Specifications
| Material: | EPDM Performance Plus |
|---|---|
| Sleeve diameter: | 75 mm |
| Wall thickness: | 2 ± 0,1 mm |
| Max. length: | 50 m |
| Perforation area: | 0,16 m2 |
| Air flow rate at standard operation condition: | 4 - 12 Nm3/hr/m |

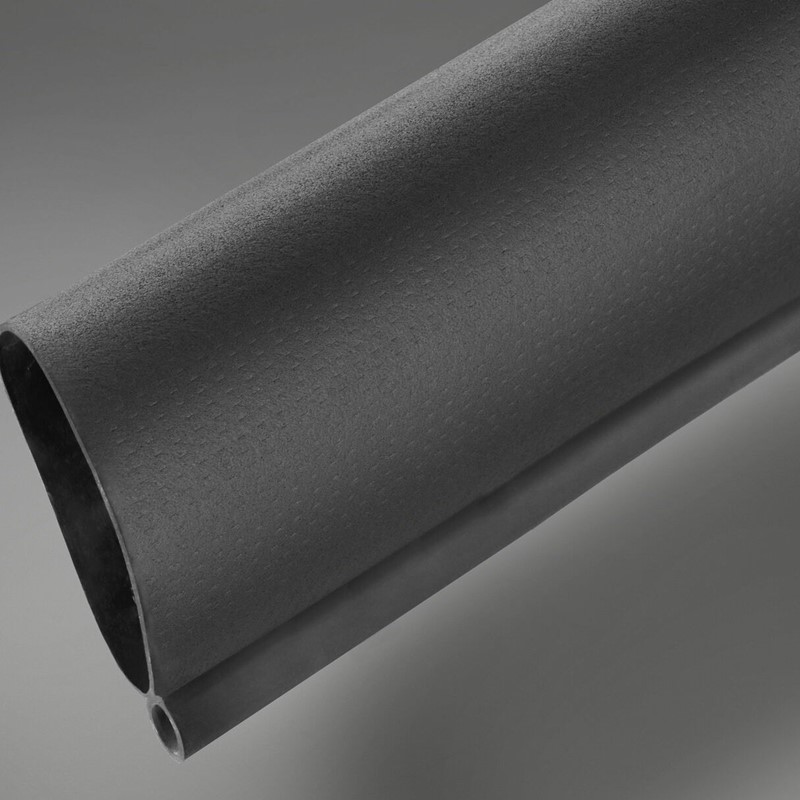

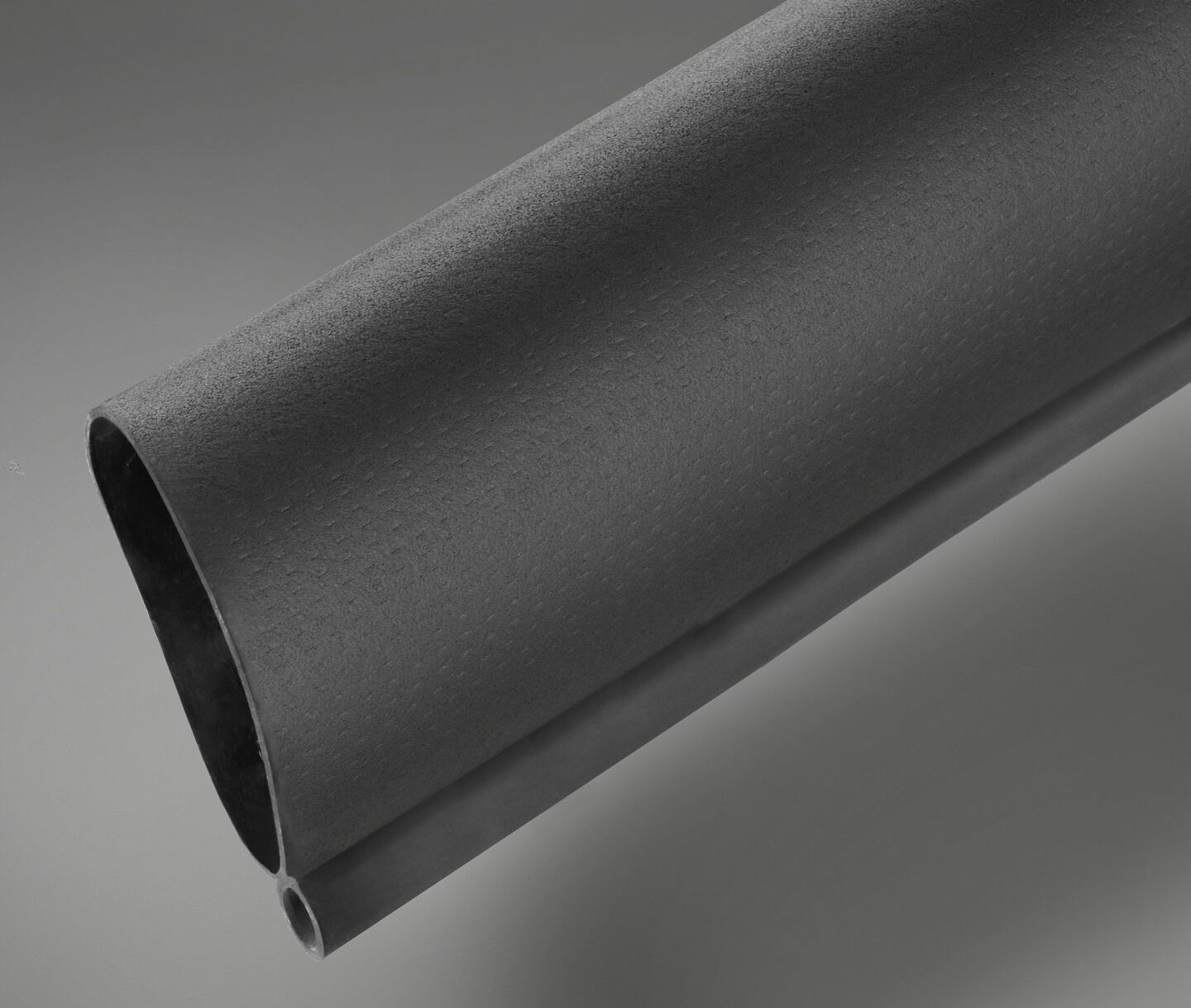

JetFlex® ET 75 Endless Tube Diffuser
The Endless Tube 75 provides a solution for efficient aeration system without conventional piping requirement and the possibility of high local contents.
The ET75 offers the advantages of saving in terms of cost and installation time.
Based on different tank dimensions, ET75 is designed with different lengths of diffusers for each project. In addition to that, the layout of the system in the tank will be prepared and made available to you. In this way, you can benefit from uniform diffuser distribution and achieve optimum aeration efficiency with easy installation and lower total costs.
Benefits:
- This diffuser consists of 75-mm sleeve without diffuser body
- Made of EPDM material which has been proven to be compatible for most wastewater types
- Customized diffuser length up to 50 m is available
- Header is needless
- Economical and fast set-up
- Effortless installation with basic accessories
- Outstanding performance at a competitive price
