| Bar Spacing: | ≥ 1 mm |
|---|

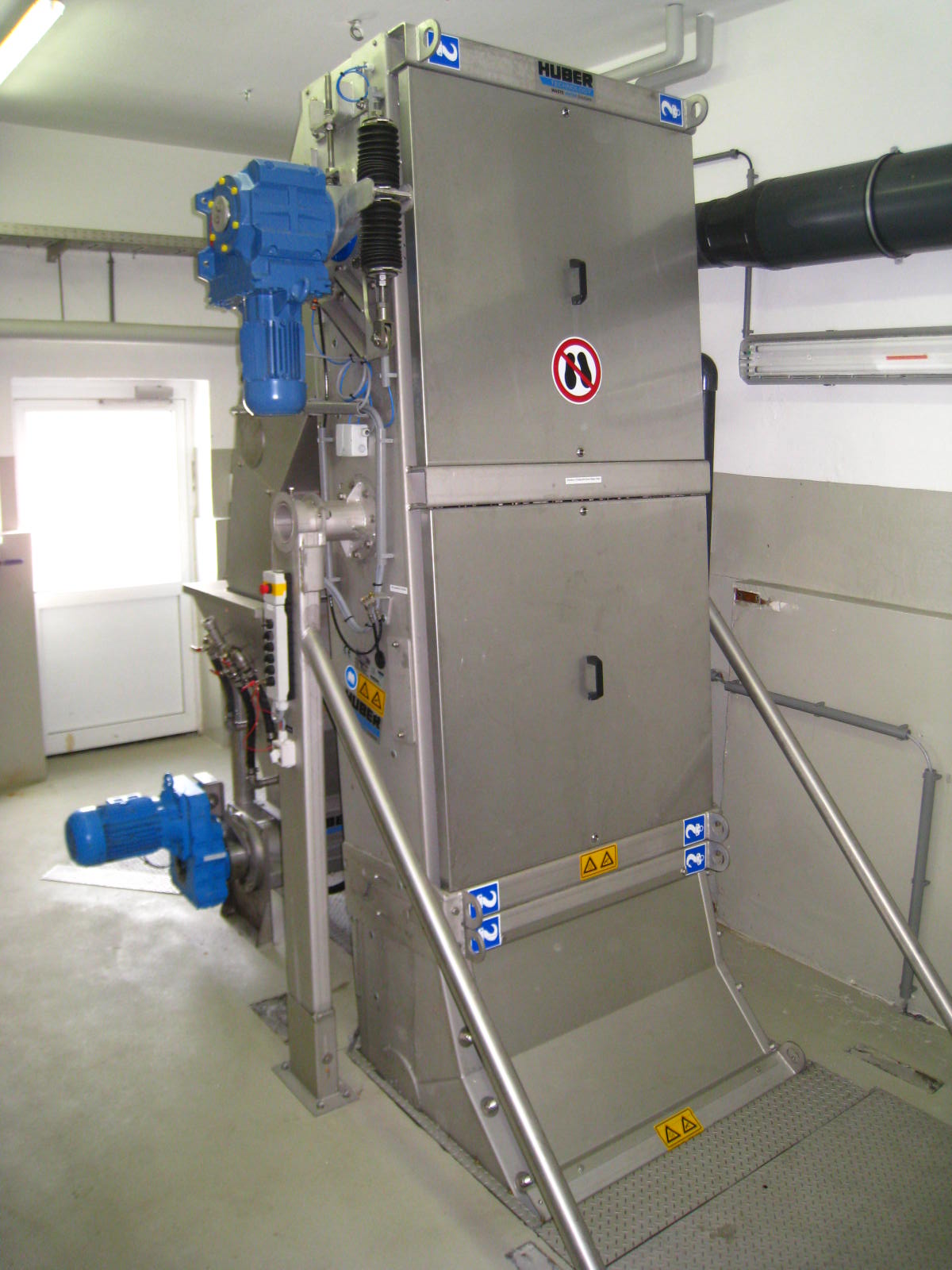

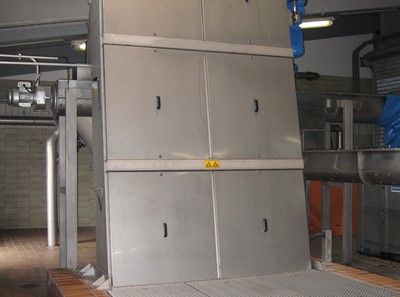

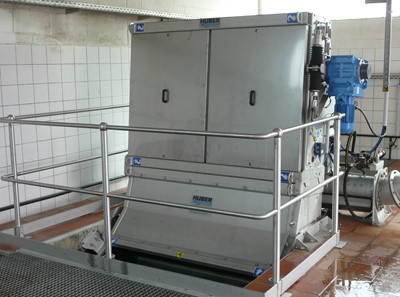

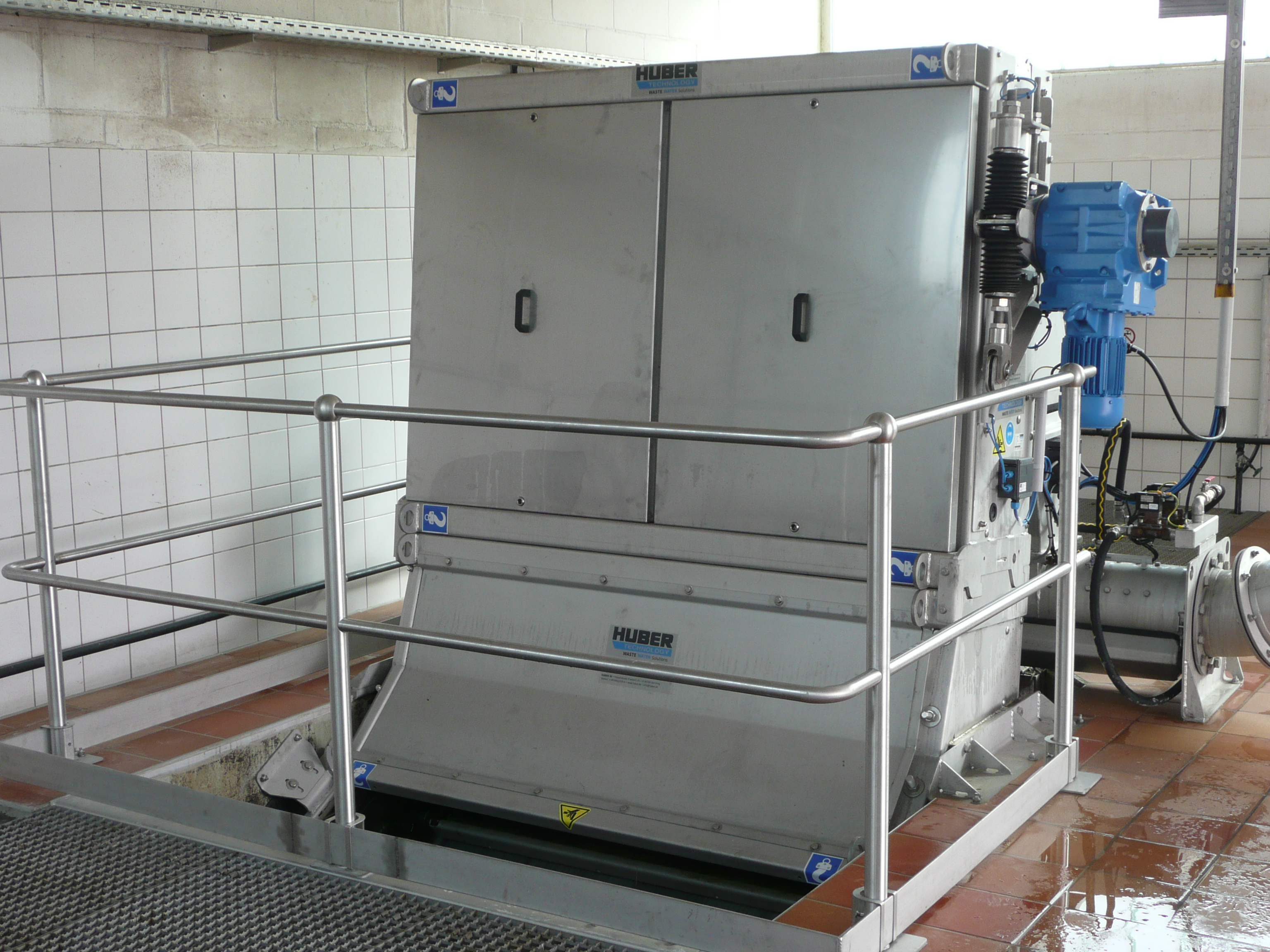

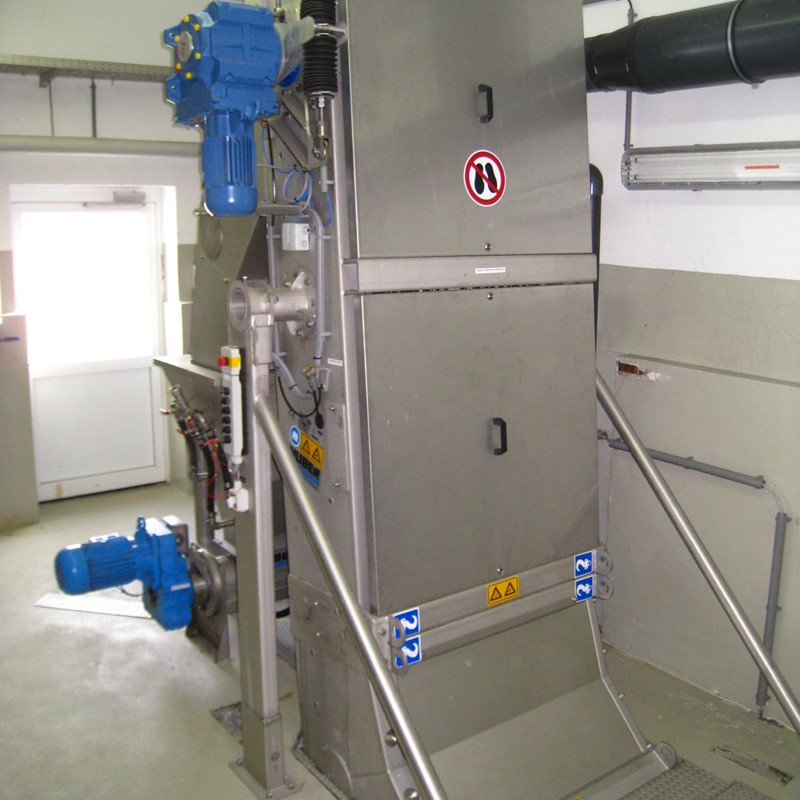

HUBER Multi-Rake Bar Screen RakeMax® HF
- High hydraulic capacity due to the extremely flat installation angle of the bar rack
- High operating reliability due to defined meshing of the cleaning elements with the bar rack
- Compact L-shaped screen
- Not hindered by gravel or grit
- Completely odour-encased screen with easy to remove covers
The HUBER Multi-Rake Bar Screen RakeMax® HF is the 'high flow' version and further development of the successful HUBER Multi-Rake Bar Screen RakeMax®.
The HUBER MultiRake Bar Screen RakeMax® HF consists of a flat, hydraulically advantageous bottom section and a steep conveying section.
Material removal from the screen starts virtually right at the bar rack mounted flat to the channel bottom so that any accumulation of disturbing material is eliminated.
The optimal approaching flow conditions and large effective bar rack surface ensure a high hydraulic throughput capacity.
The cleaning elements, attached to the chain system, can easily be adjusted to different requirements, the screenings discharge capacity is then extremely variable. This is especially favourable for high solids loads. Depending on the size of bar spacing, the bar rack design is either a flow-optimising bar or non-blocking wedge wire profile.
