| Discharge height: | max 6,7 m |
|---|---|
| Channel width: | 600 - 2000 mm |
| Water level: | up to 2230 impoundage |
| Slot witdth: | 3 and 6 mm |

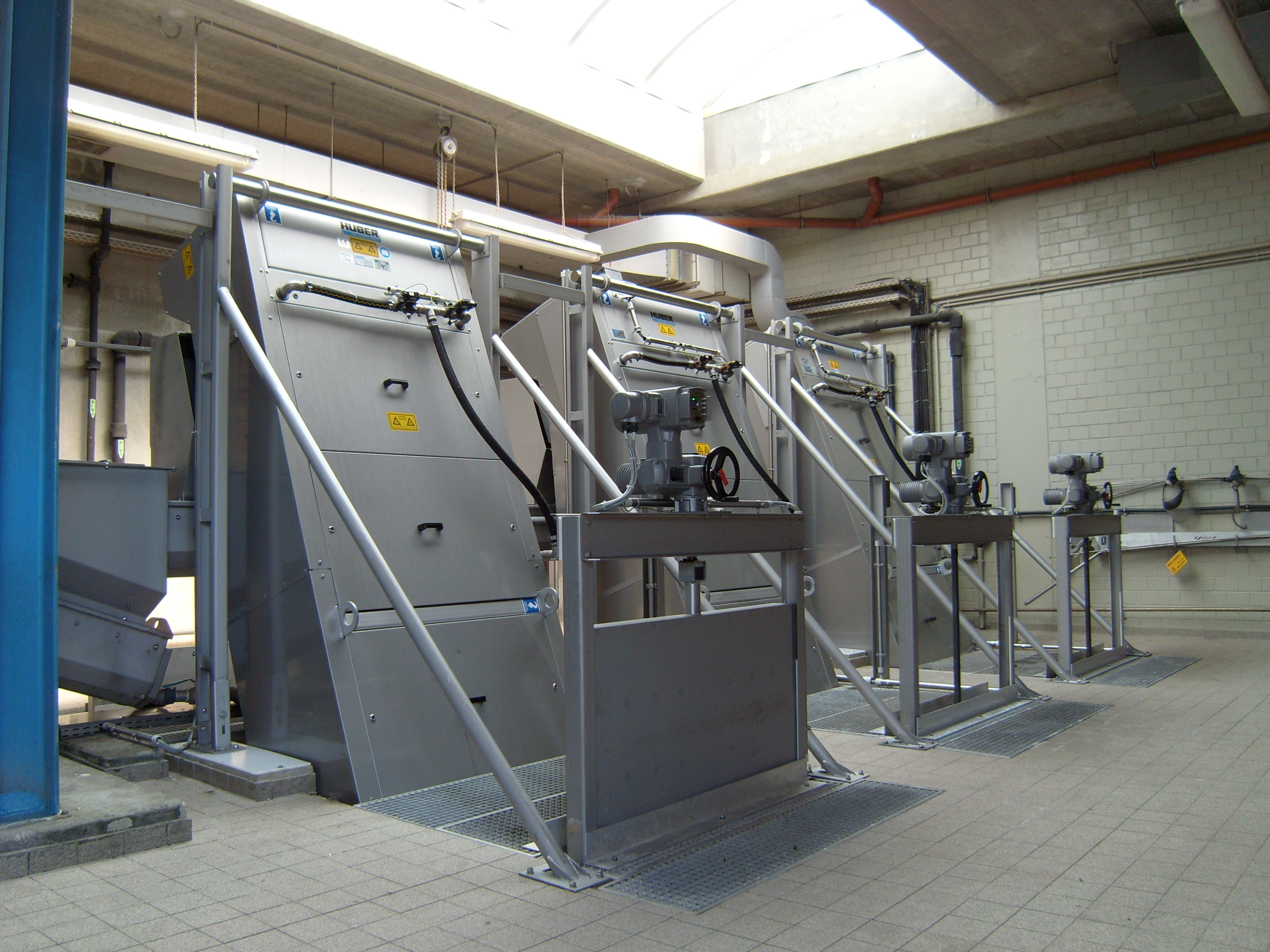

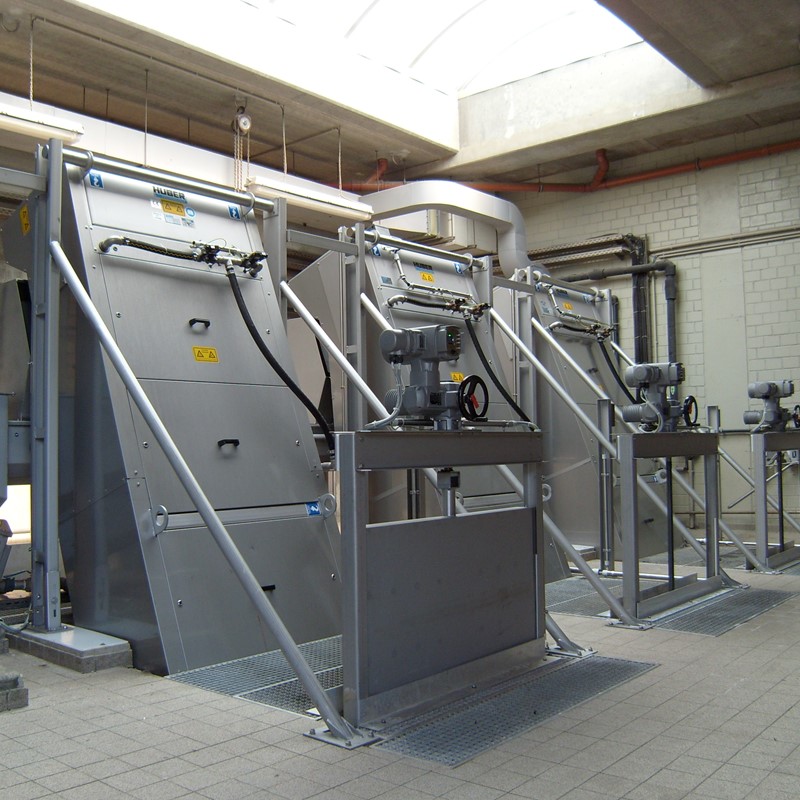

Huber Fine Screen STEP SCREEN® SSV
- Space-saving due to steep installation angle
- For big discharge heights and deep channels
- For high flow rates
- Lifting of screenings at channel bottom level
The HUBER STEP SCREEN® System is widely accepted and successful due to its function and easy-to-follow operation principle as well as the simple cleaning method without any aids (self-cleaning effect according to the countercurrent principle).
It is furthermore easy to maintain and able to handle extremely big screenings volumes while it offers also a high operational reliability.
Benefits:
Function principle:

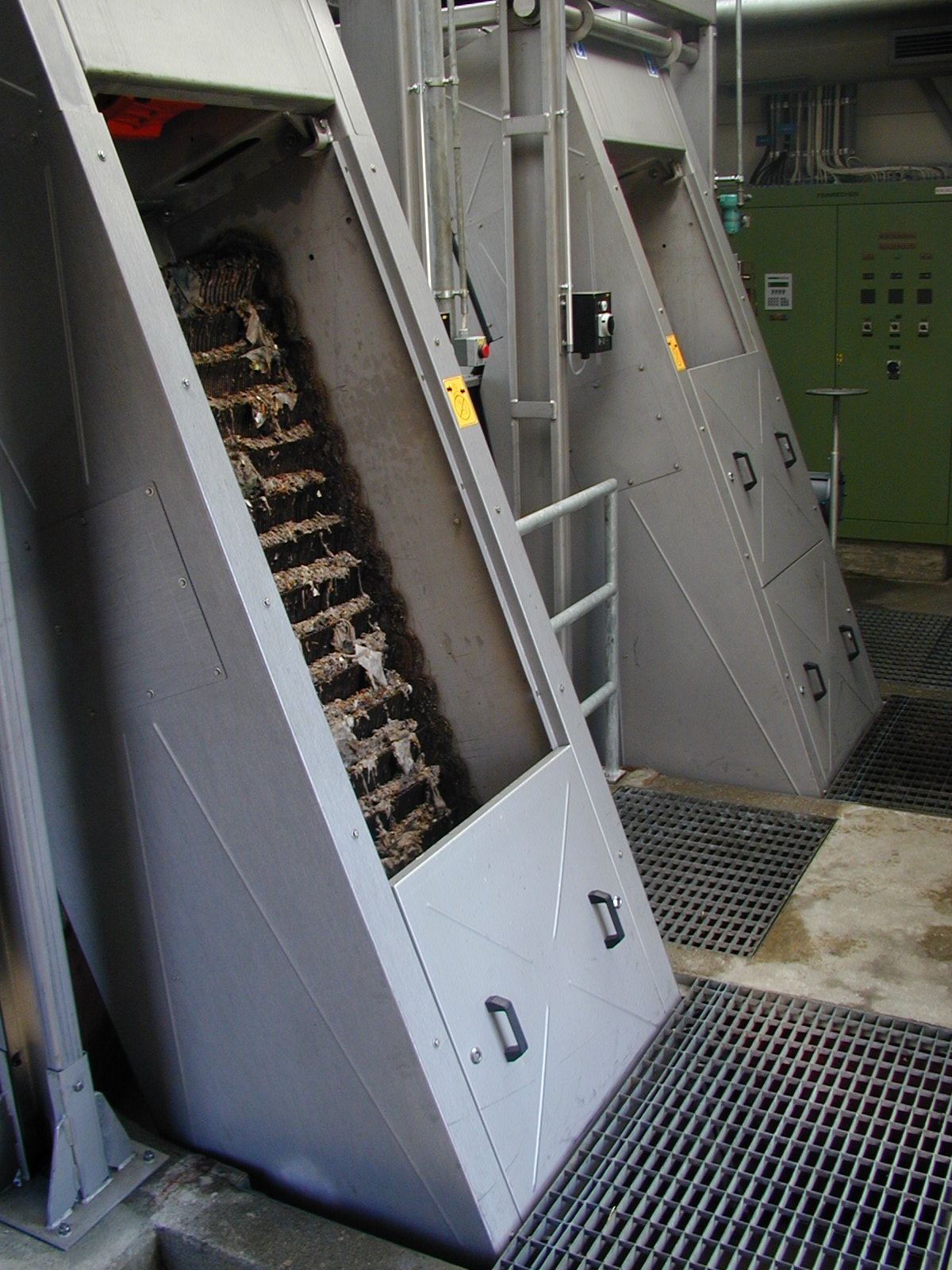

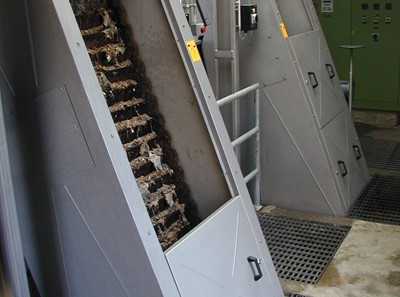

- Lifting of screenings at bottom level due to a special bottom step design
- Gentle and complete screenings transport due to the counter-current principle
Flow rate:
High capacity; the flow passes the screen surface only once
Separation efficiency:
Very high separation efficiency due to the narrow slot width and the produced screenings carpet.
Cleaning:
Self-cleaning effect due to movable lamellas (no spray water required, no brushes)
Operational stability:
Reduced susceptibility to grit, gravel and stones whether installed with or without an invert step.
Protection against corrosion:
Manufactured from stainless steel and acid-treated in a pickling bath.
Pivoting arrangement:
Removal of the subsequent wash press or conveying unit is not required.
