Specifications

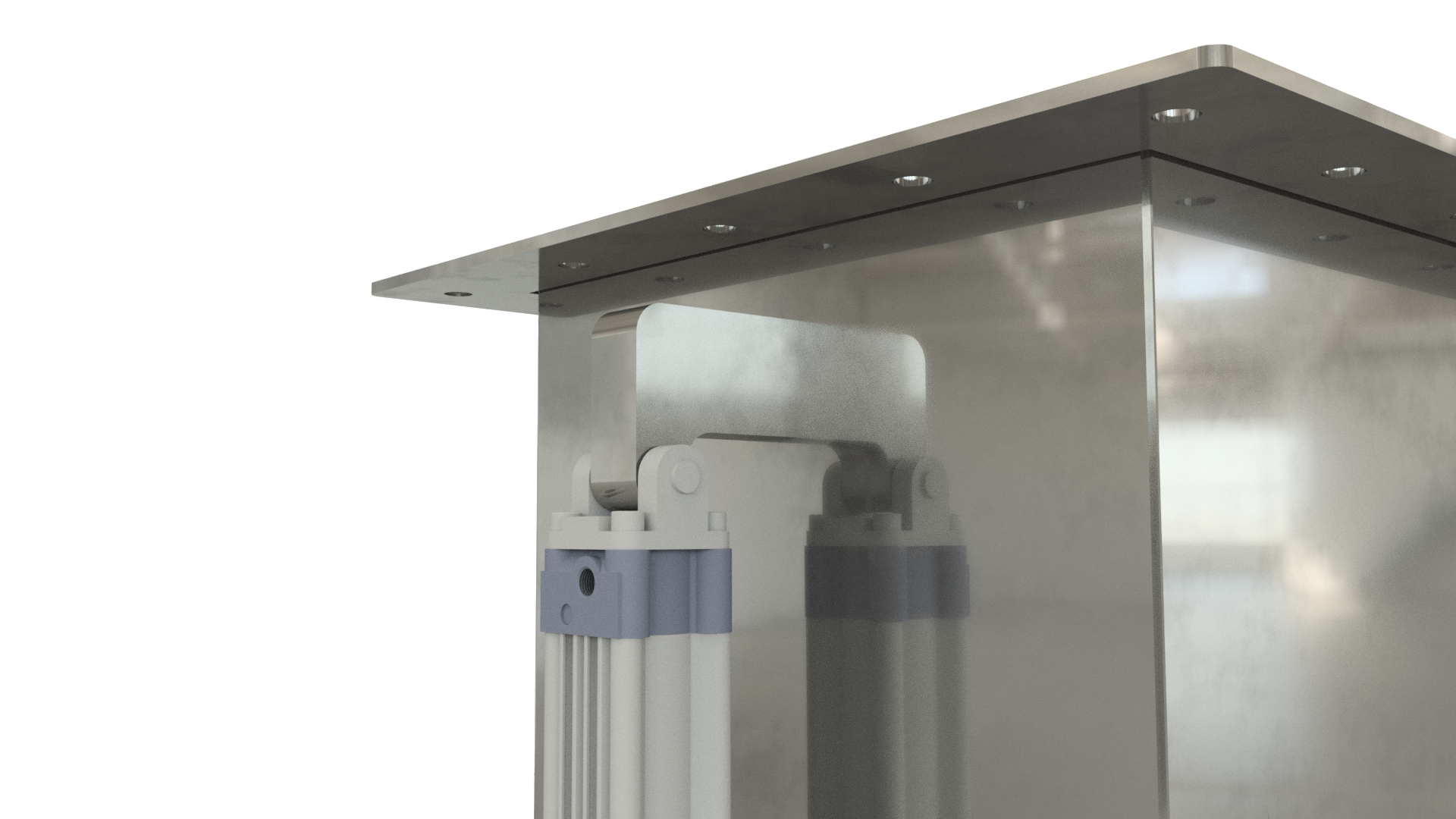

| Pneumatic cylinder: | VDMA Magnet cyl. Ø32-0300 |
|---|---|
| Telescopic tube: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Fittings: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Suction pipe DN100: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Pneumatic cylinder: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Inner rails (upper+lower): | PEHD plastic |
| Bottom plate: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Gasket between the screw conveyor and telescopic chute: | EPDM rubber |

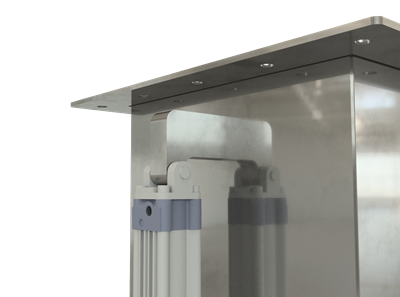

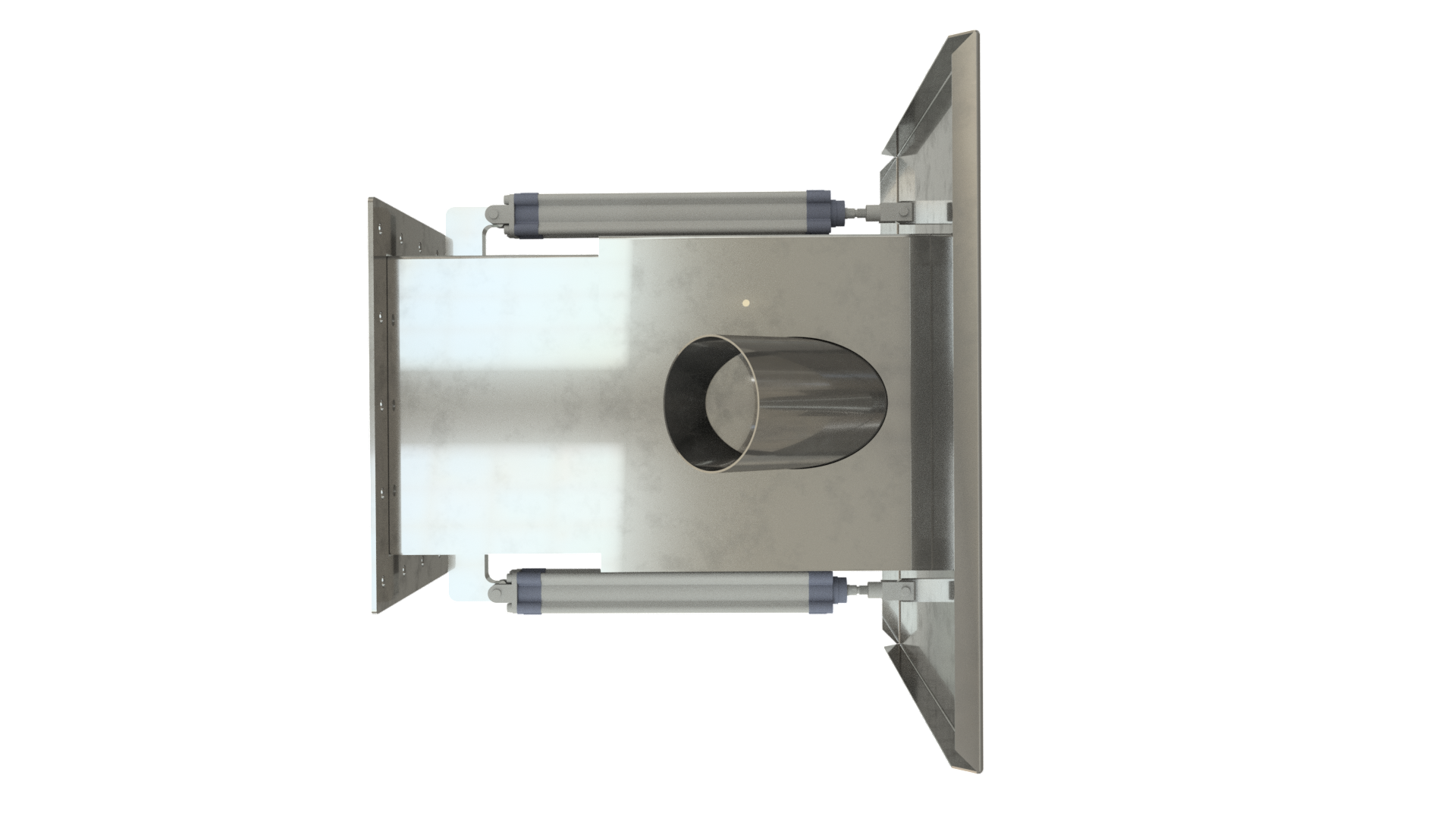

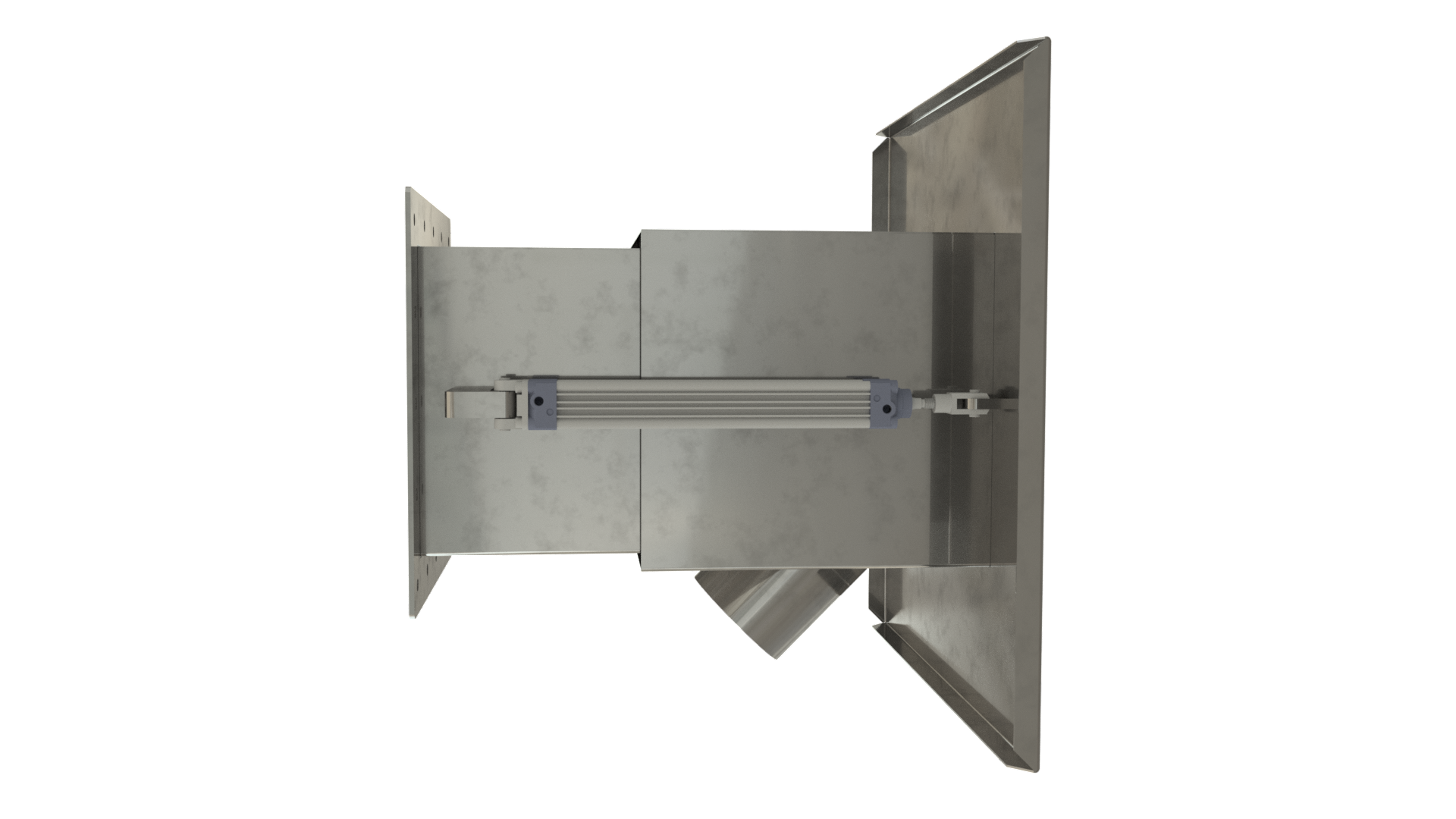

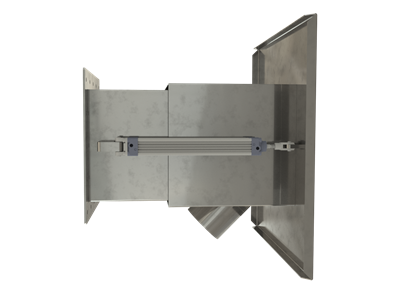

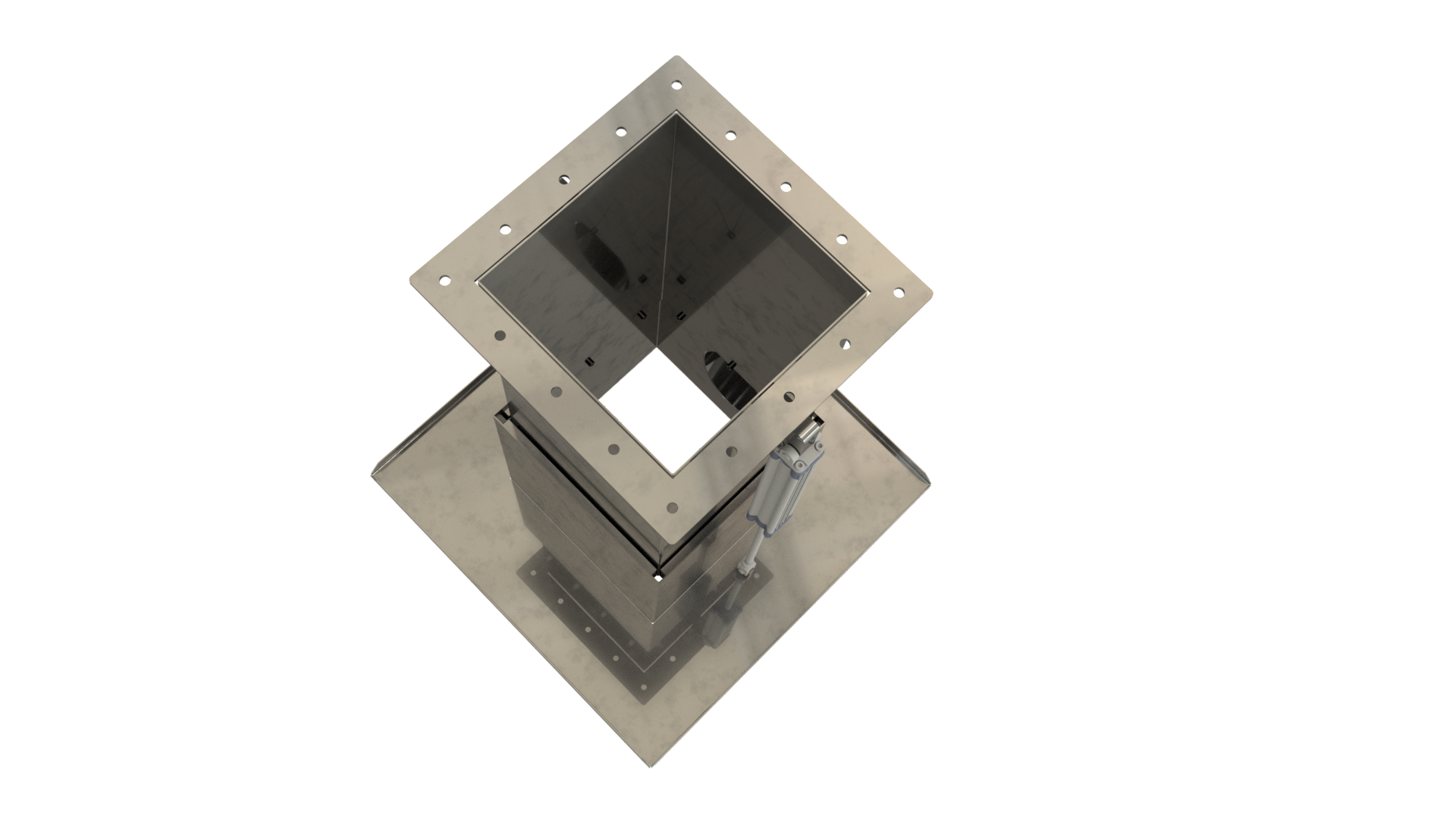

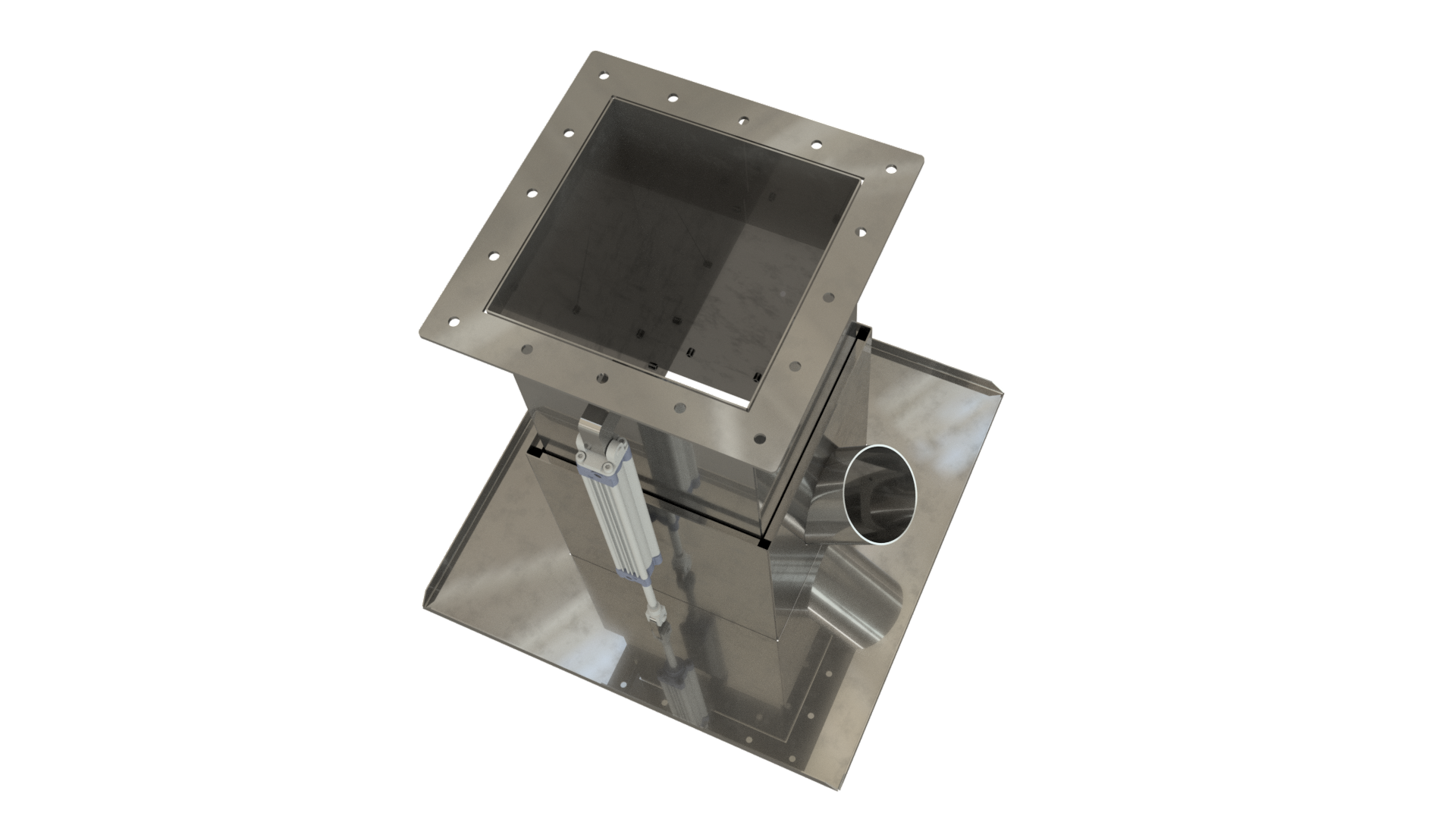

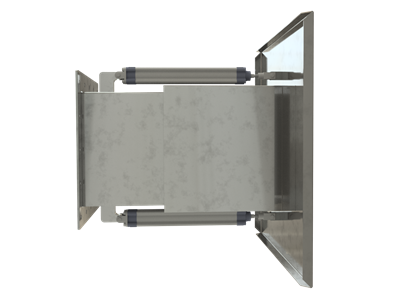

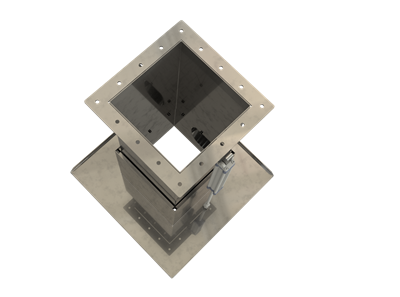

Telescopic chute
Type number: AQ.027.001

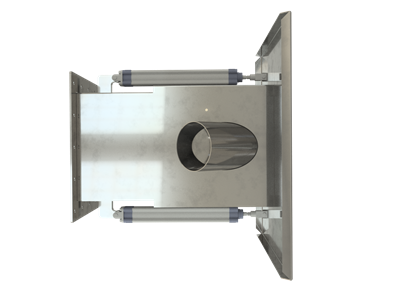

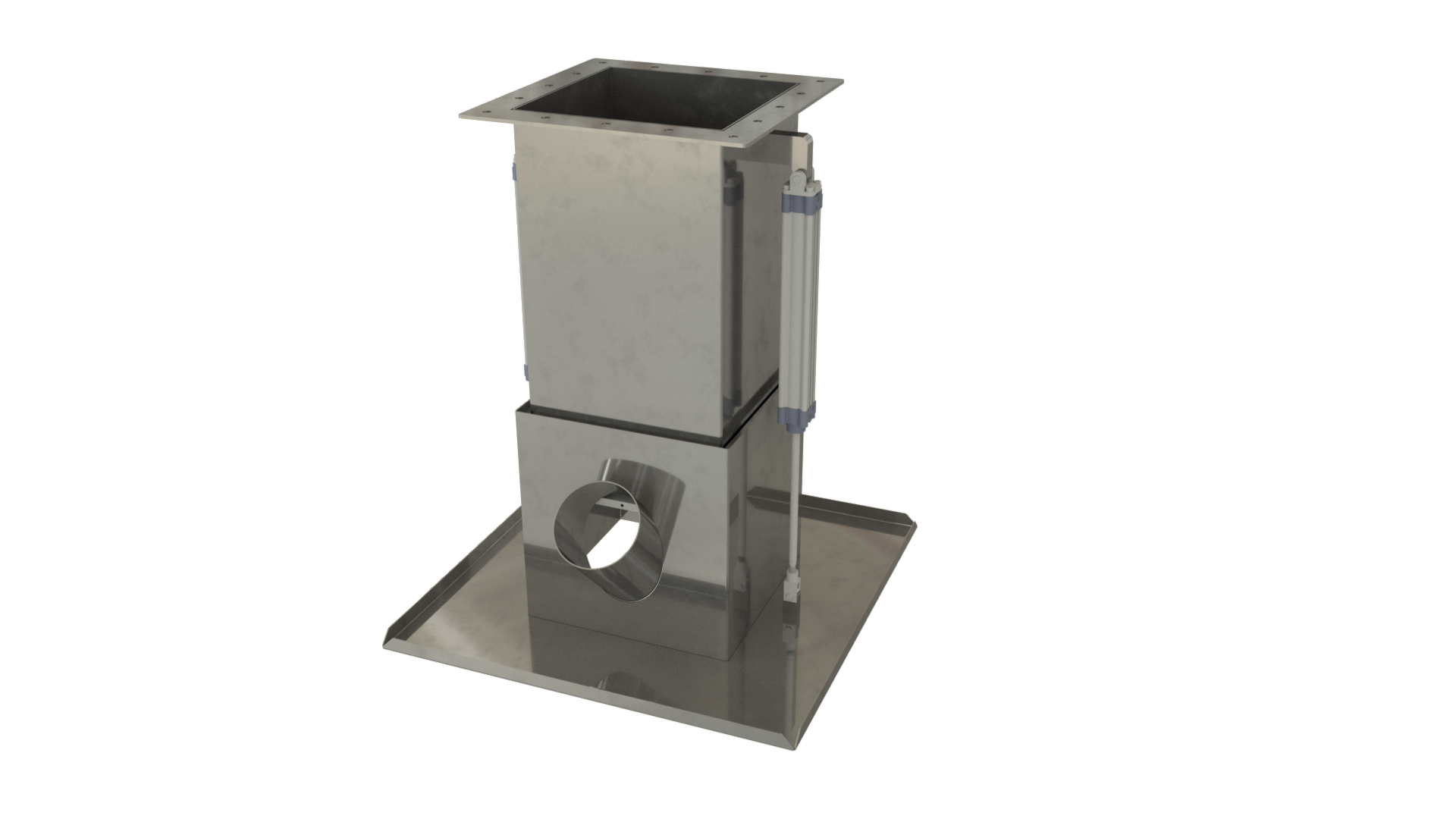

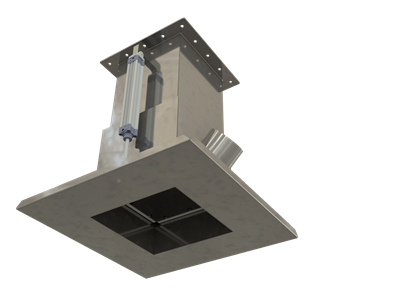

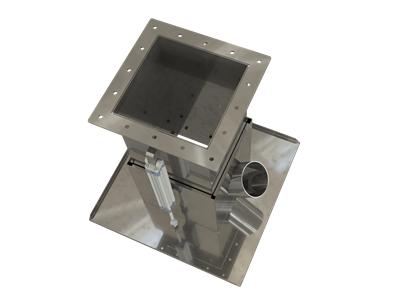

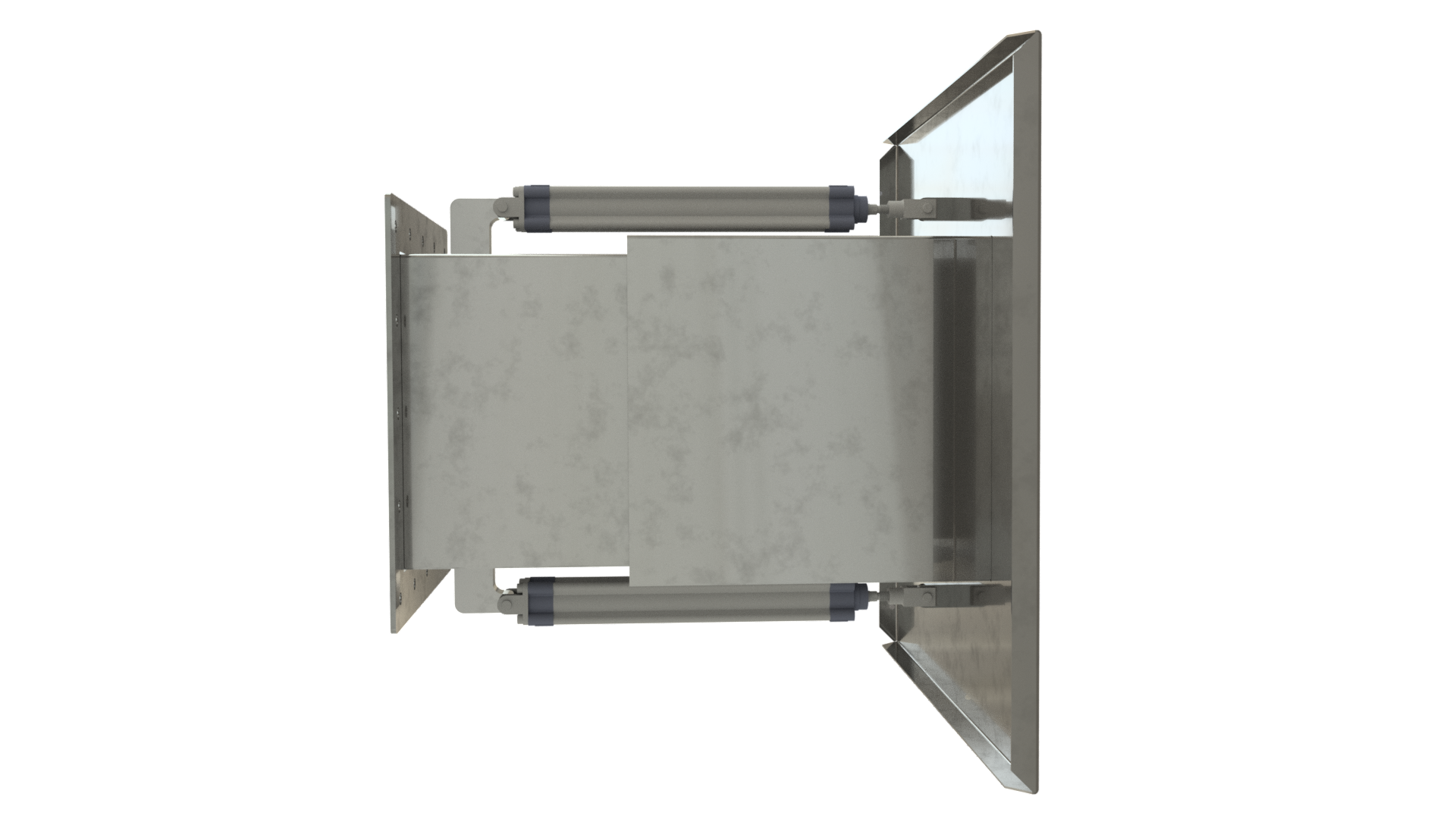

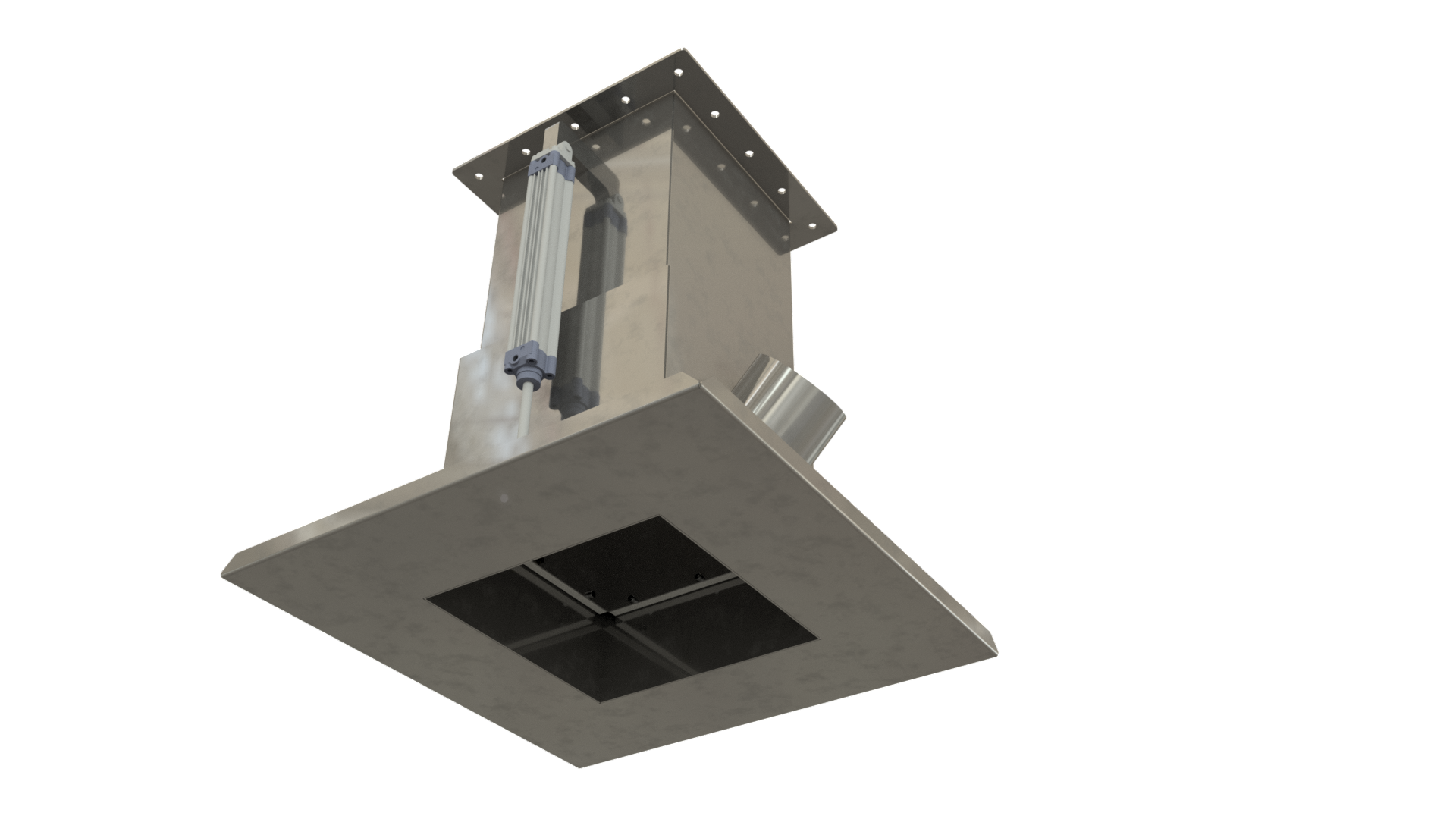

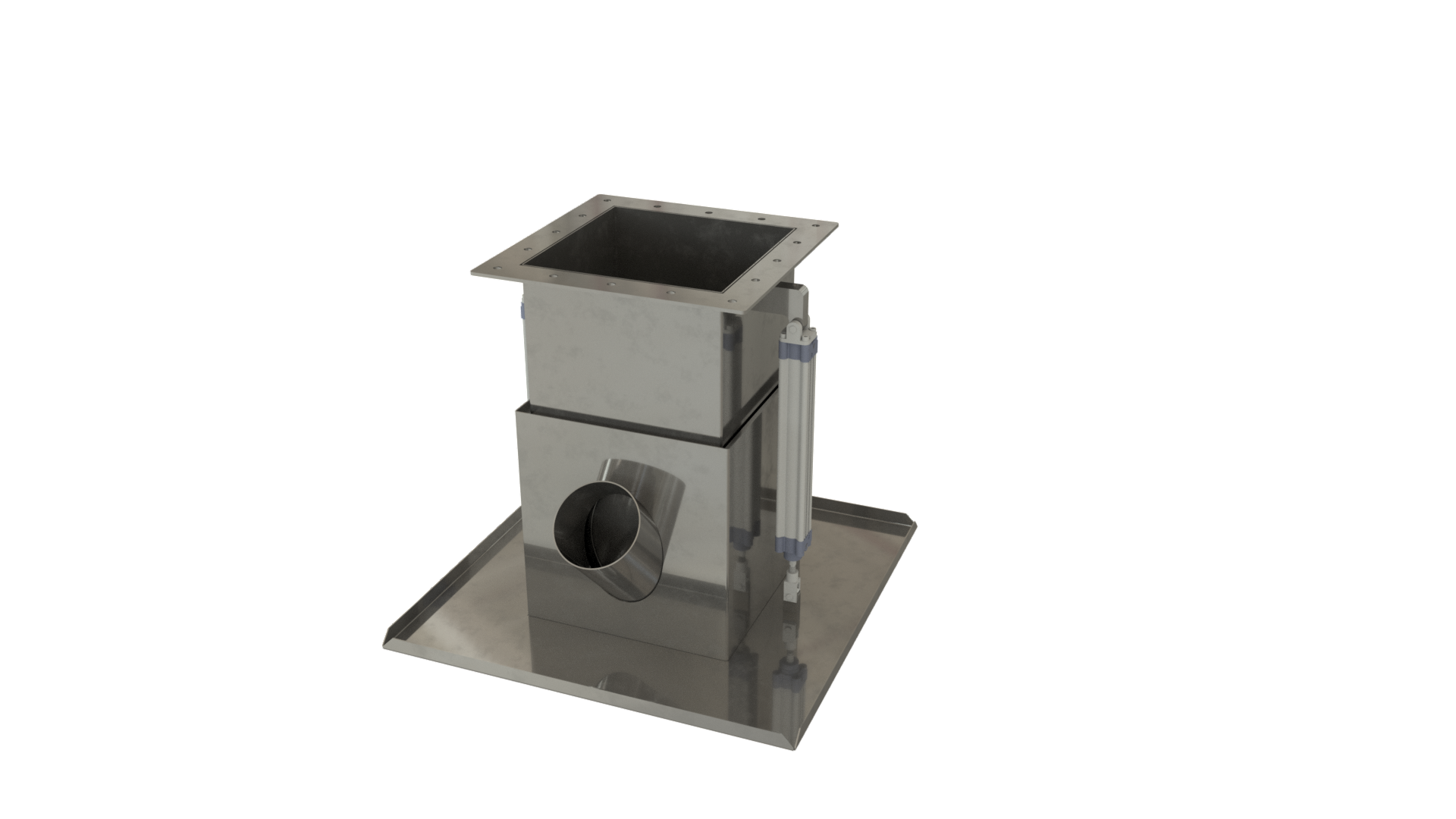

The AQ.027.001 Telescopic chute is used as a chute into the container.
The chute is adjustable in height. The telescopic chute is used when connecting sludge and slurry containers with a hatch placed on top.

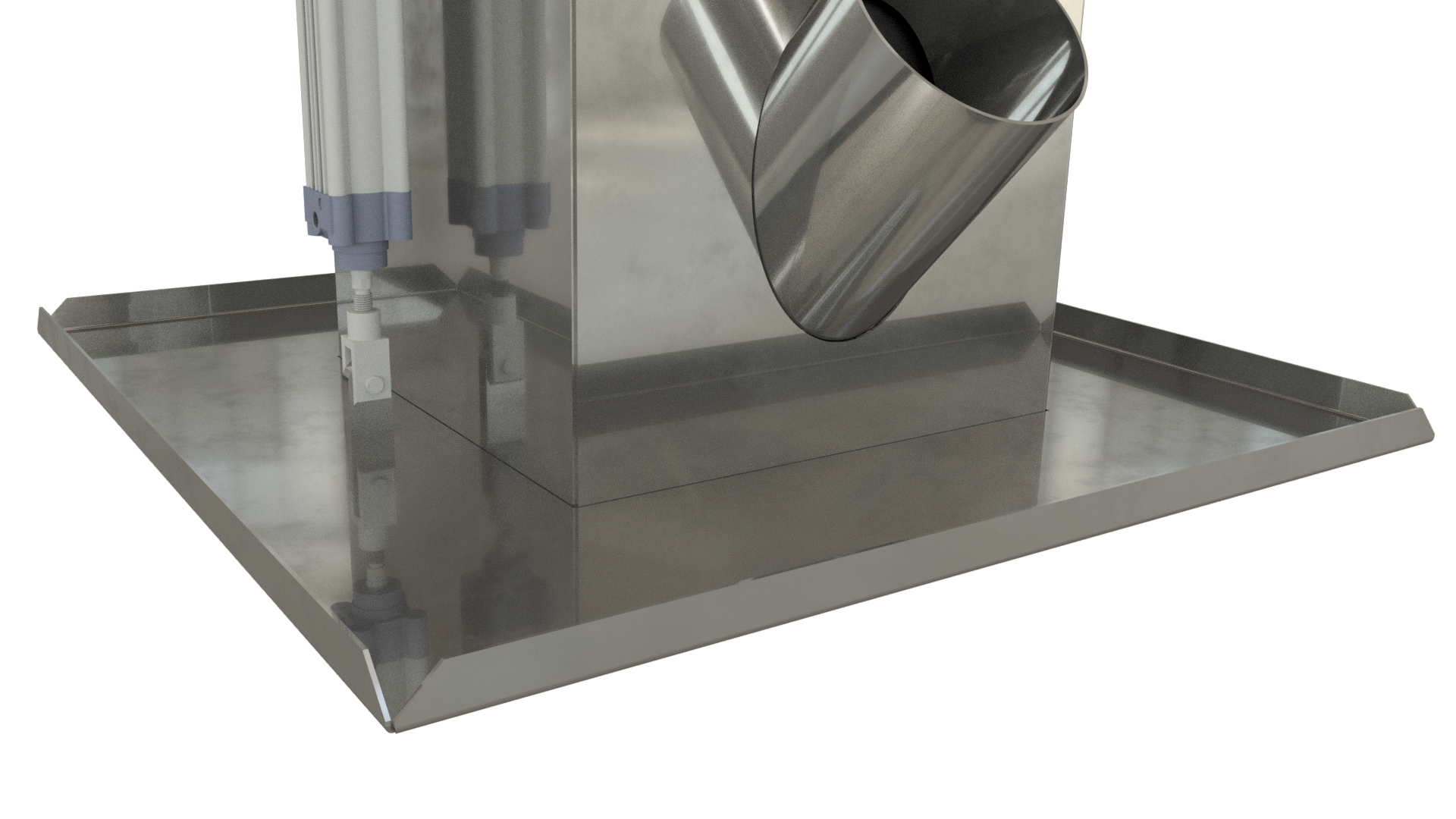

When the telescopic chute is lowered, the plate of the telescope connects tightly against the container, opening the ventilation and minimising odours and spillage.
When the telescopic chute is up, the ventilation is closed and the container can be removed.
