Specifications
Pressure ratio: 1 mVs Watertight from both sides.
Pneumatic cylinder: DMA Magnet cyl. Ø32-350
Frame: Stainless steel EN 1.4301 or acid-proof steel EN 1.4404
Valve plate: Stainless steel EN 1.4301, acid-proof steel EN 1.4404
Spindle: Stainless steel EN 1.4301, acid-proof steel EN 1.4404 in a pneumatic cylinder
Adjusting screw: Brass
Valve gasket: Ø12 mm EPDM Shore A 65-70 Part number 30.112 E
Rail: PEHD plastic

Pneumatic slide valve

Type number: AQ.017.004

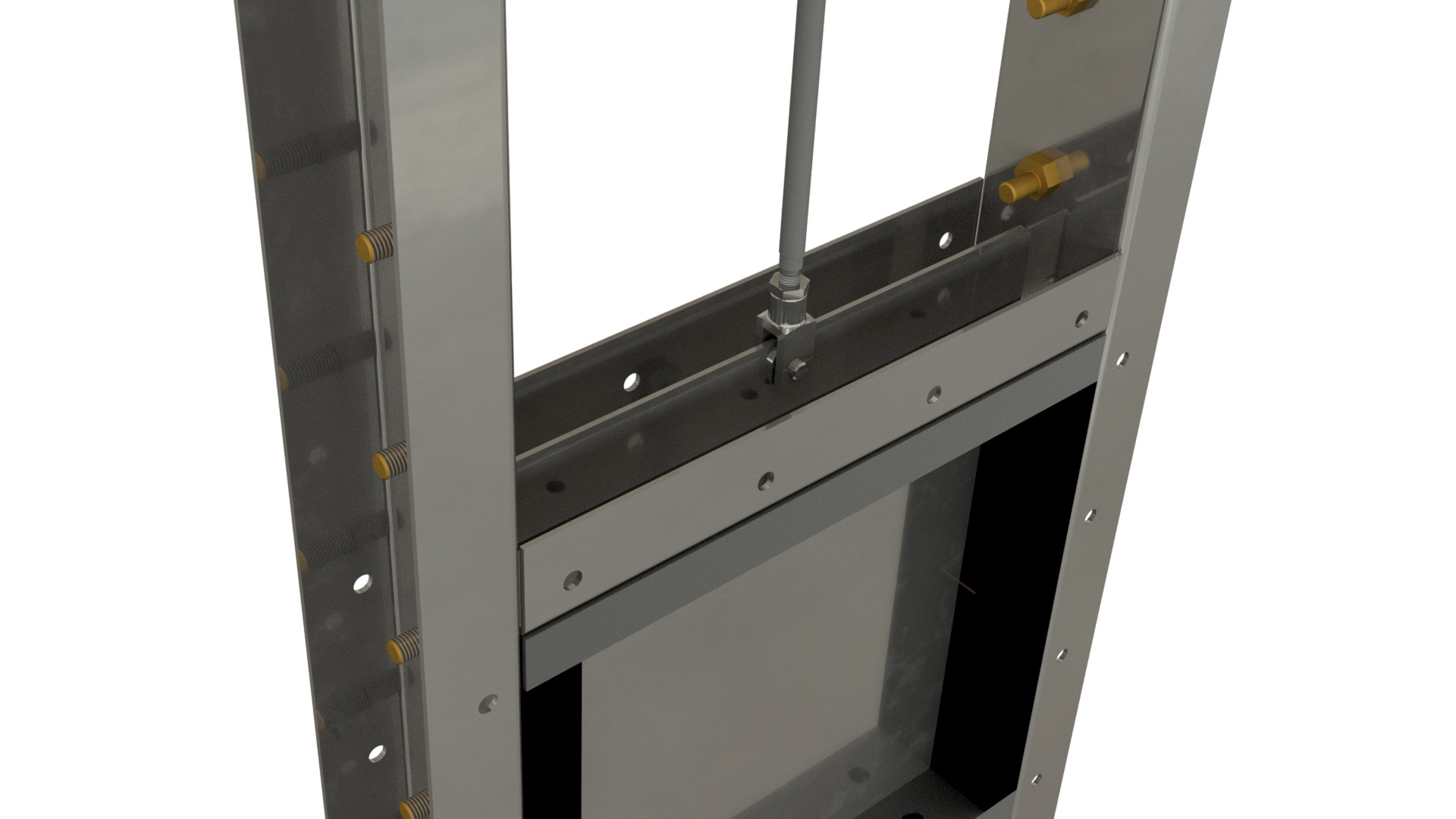

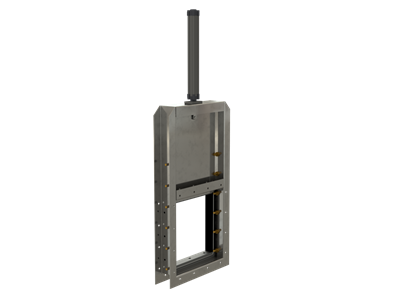

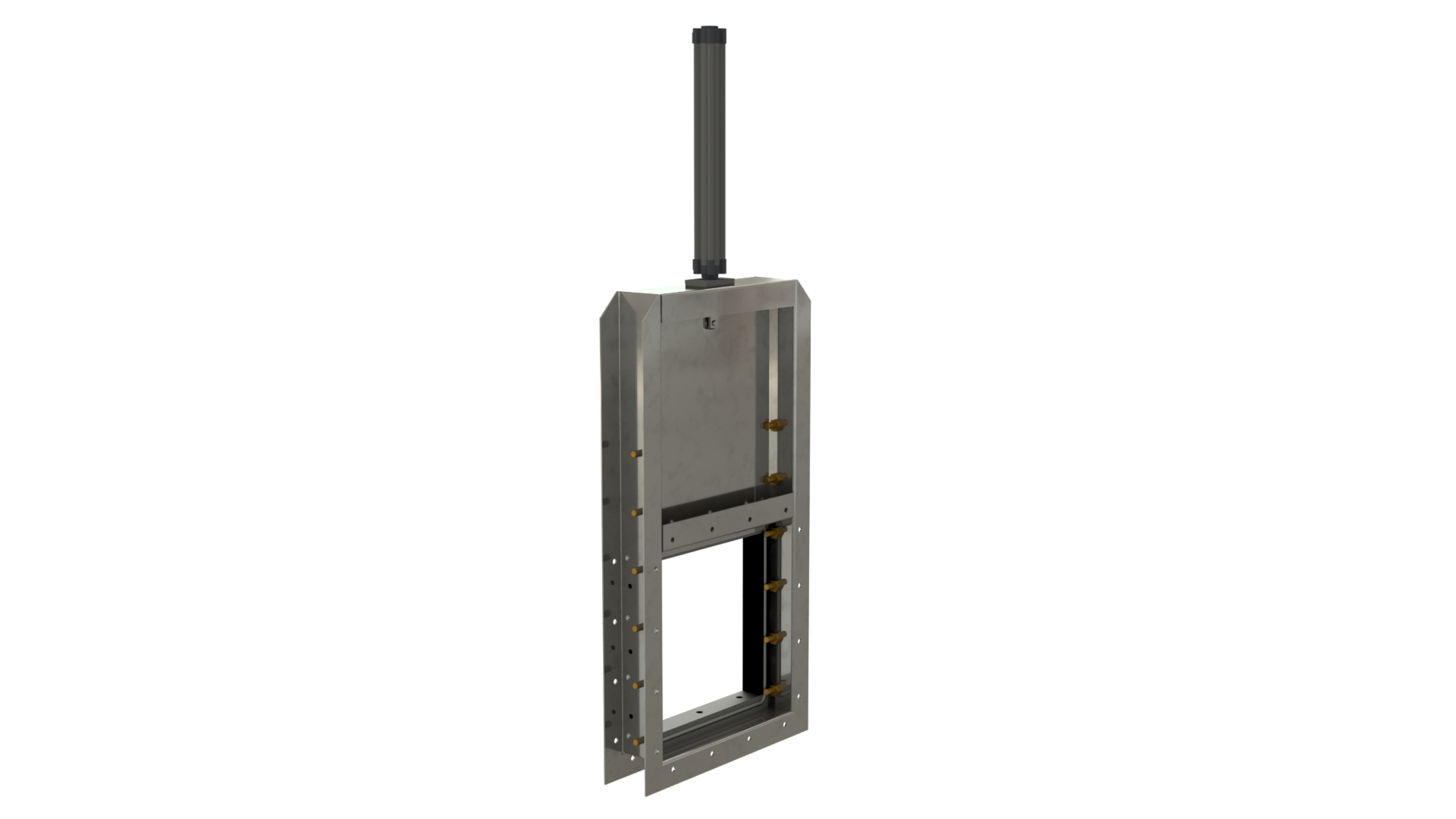

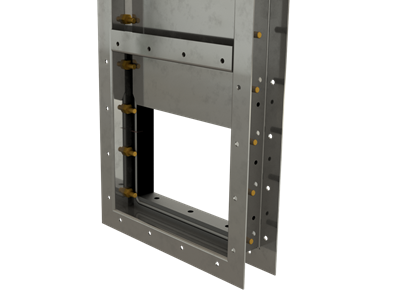

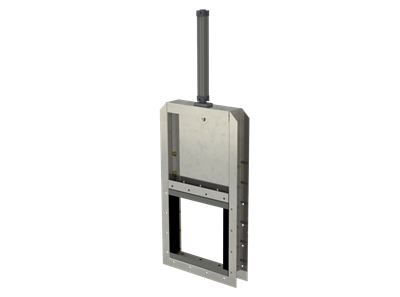

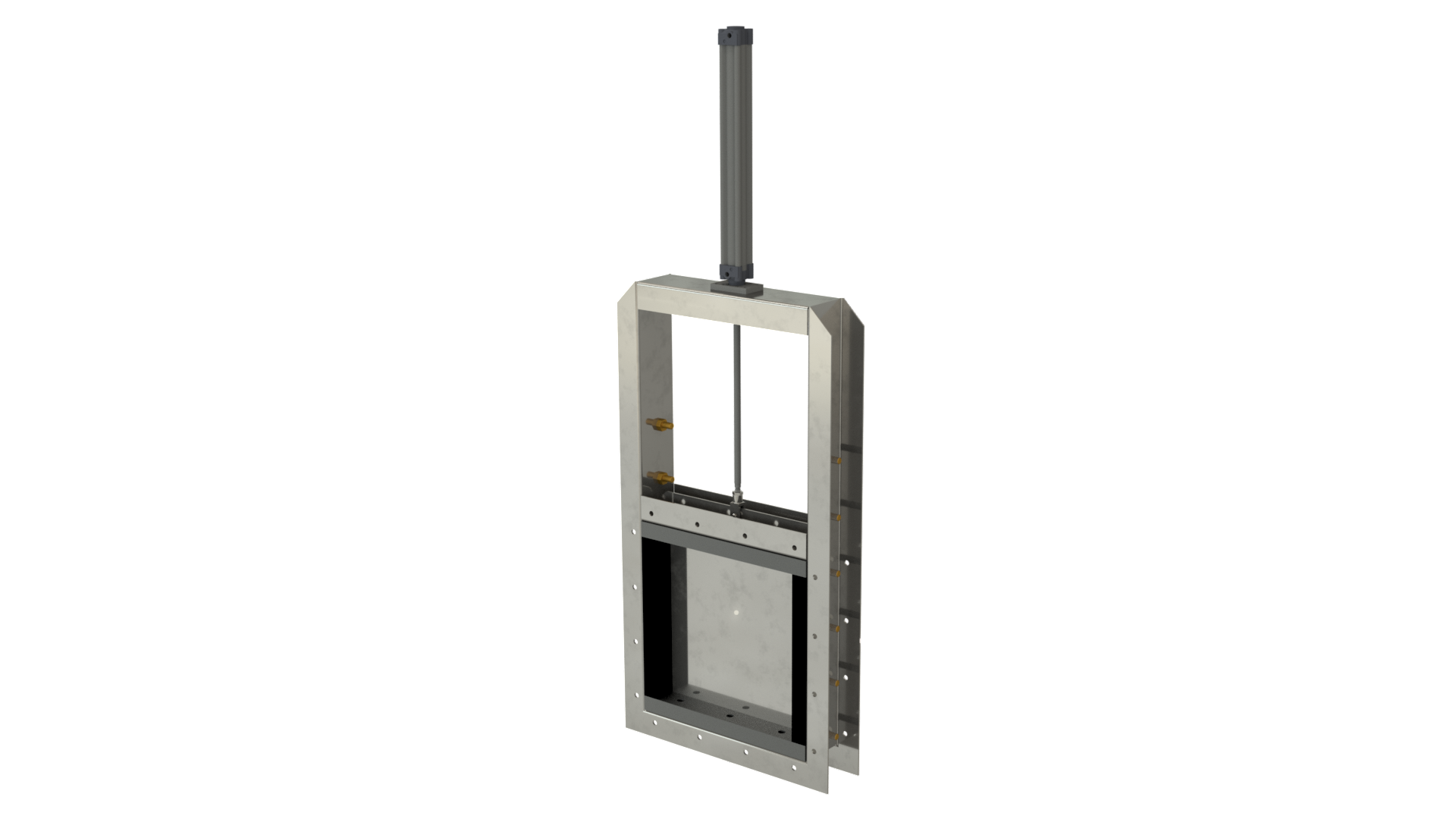

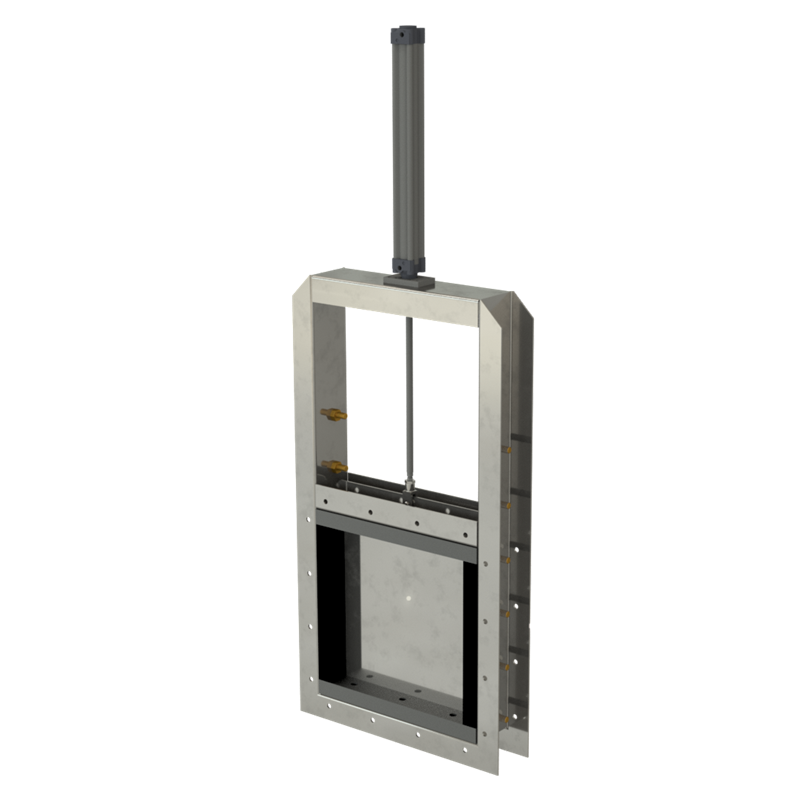

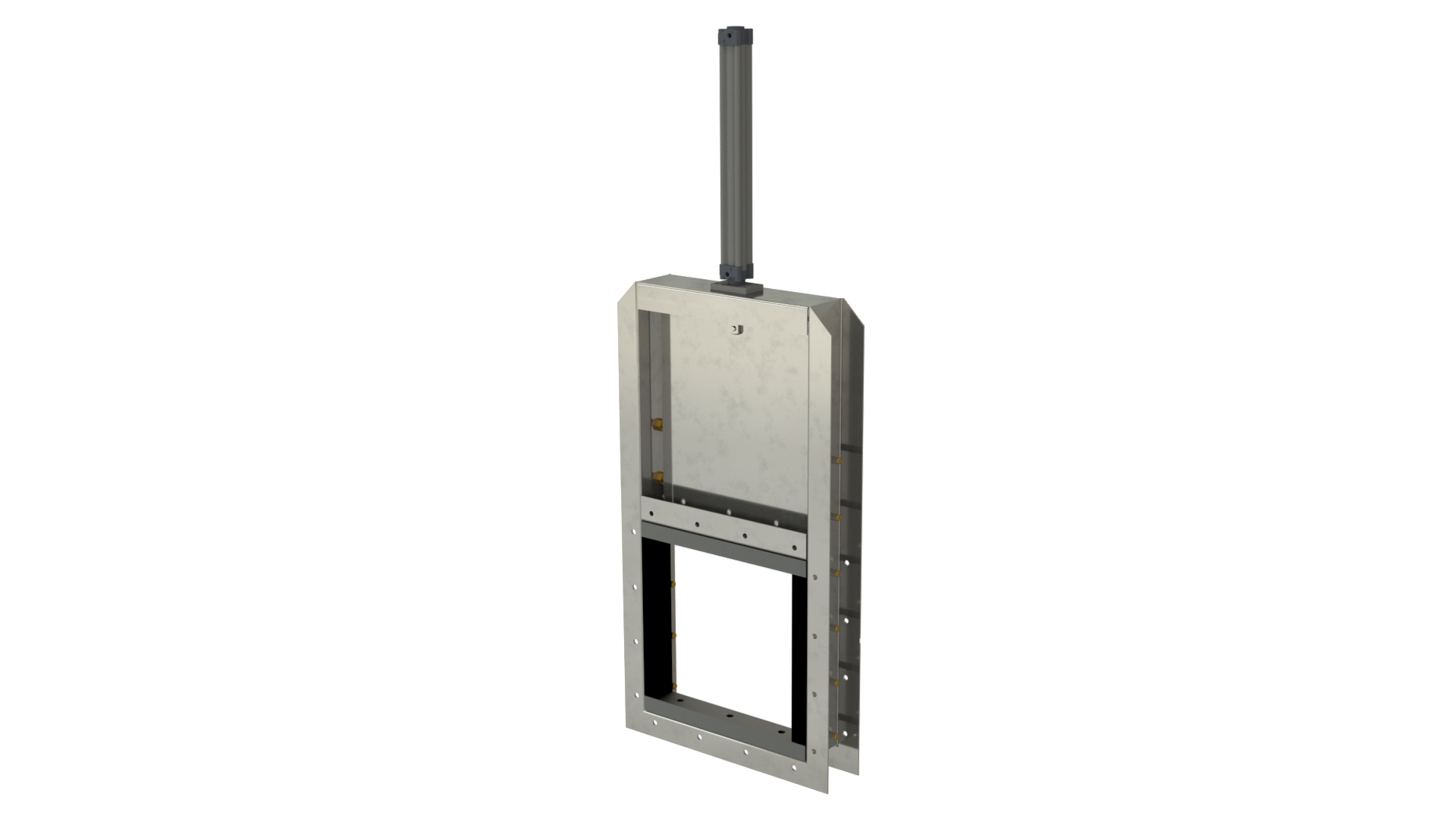

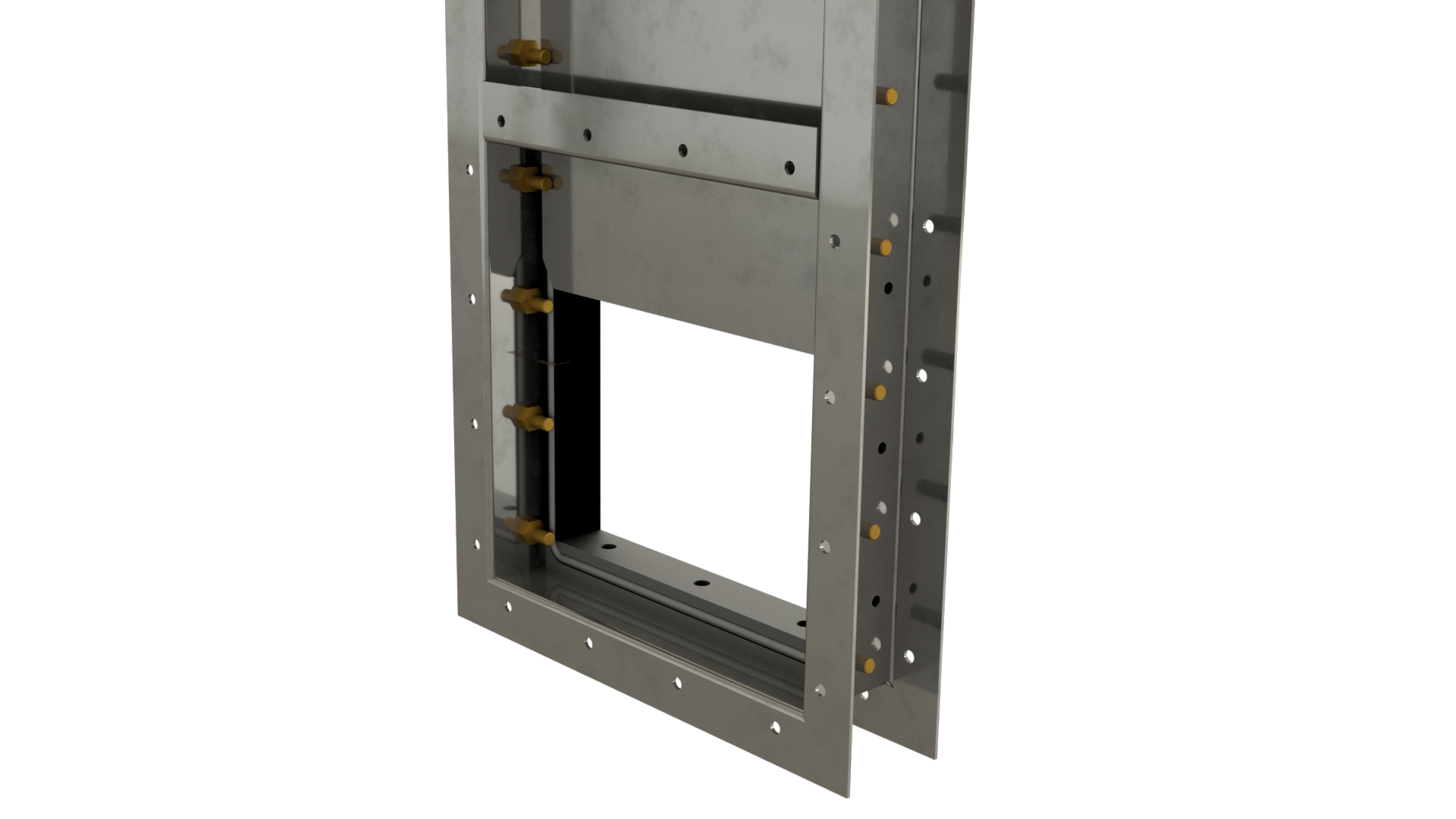

The AQ.017.004 pneumatic slide valve is used for shut-off tasks between screw conveyors and containers.

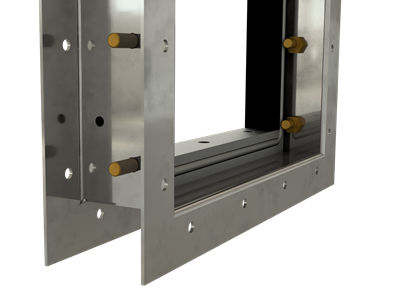

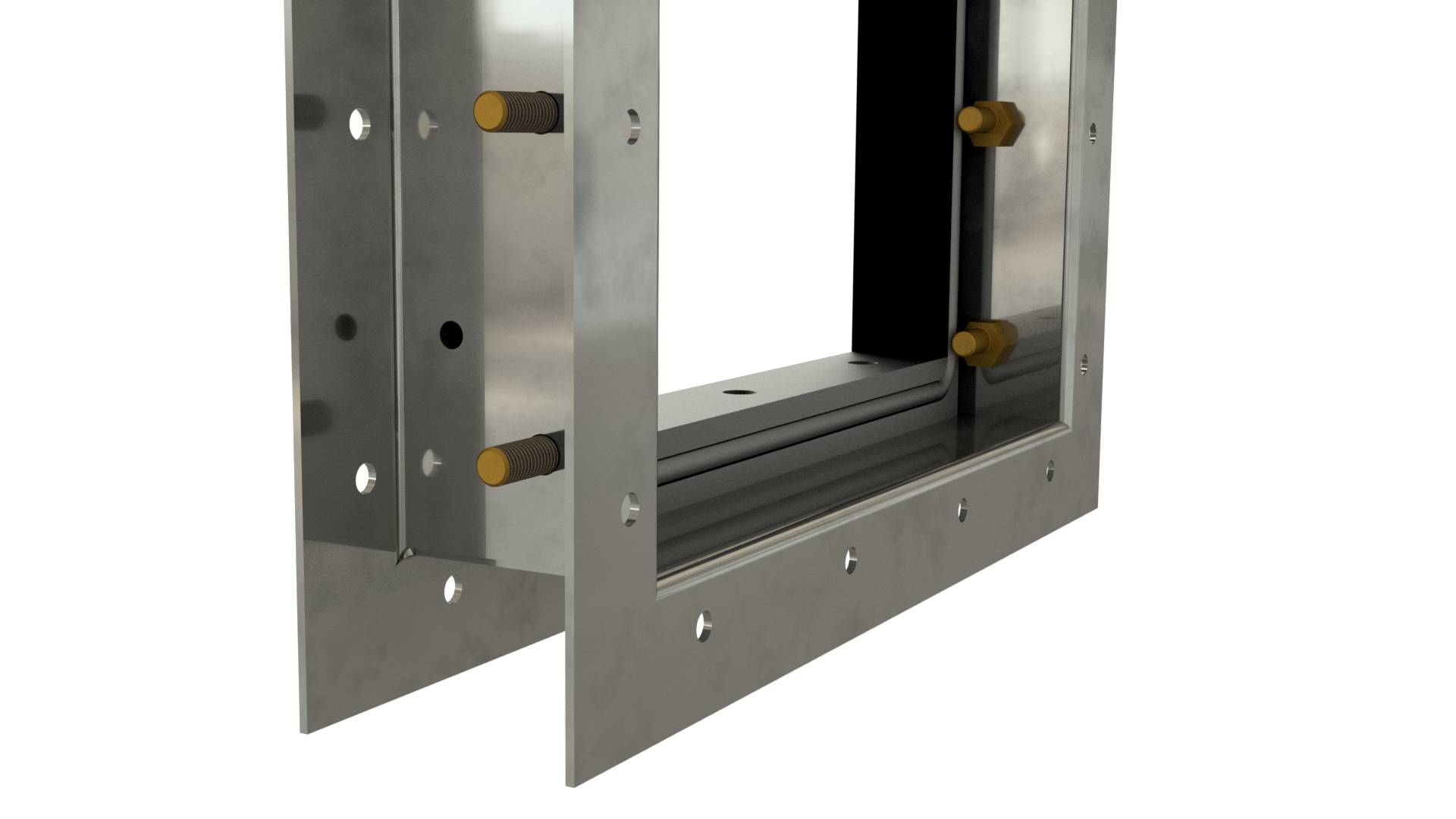

Aquagain's AQ.017.004 pneumatic slide valve is available with a frame profile in EN 1.4404, eccentric adjustment screw for the valve plate and EPDM gaskets in the sides for sealing.

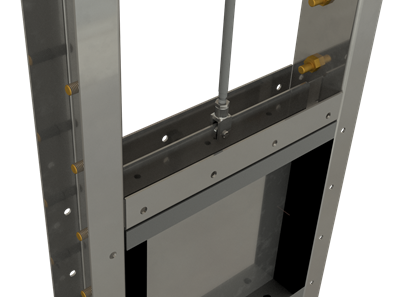

The product is ready for bolting to the return of the screw conveyor. The valve plate is controlled by a pneumatic cylinder (compressed air).
