| Pressure ratio | 6 mVs |
|---|---|
| Angle gear: | RAN 24SB gear: i = 1 |
| Frame: | Stainless EN 1.4301, acid-proof steel EN 1.4404 |
| Valve plate: | Stainless EN 1.4301, acid-proof steel EN 1.4404 |
| Spindle: | Stainless EN 1.4301, acid-proof steel EN 1.4404 |
| Bushing: | Bronze 25 QOB A R (zinc-free) |
| Rails in valve frame: | PEHD plastic |
| O-ring: | EPDM rubber |

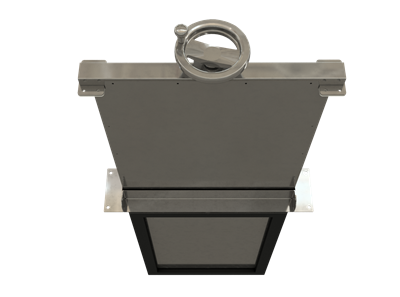

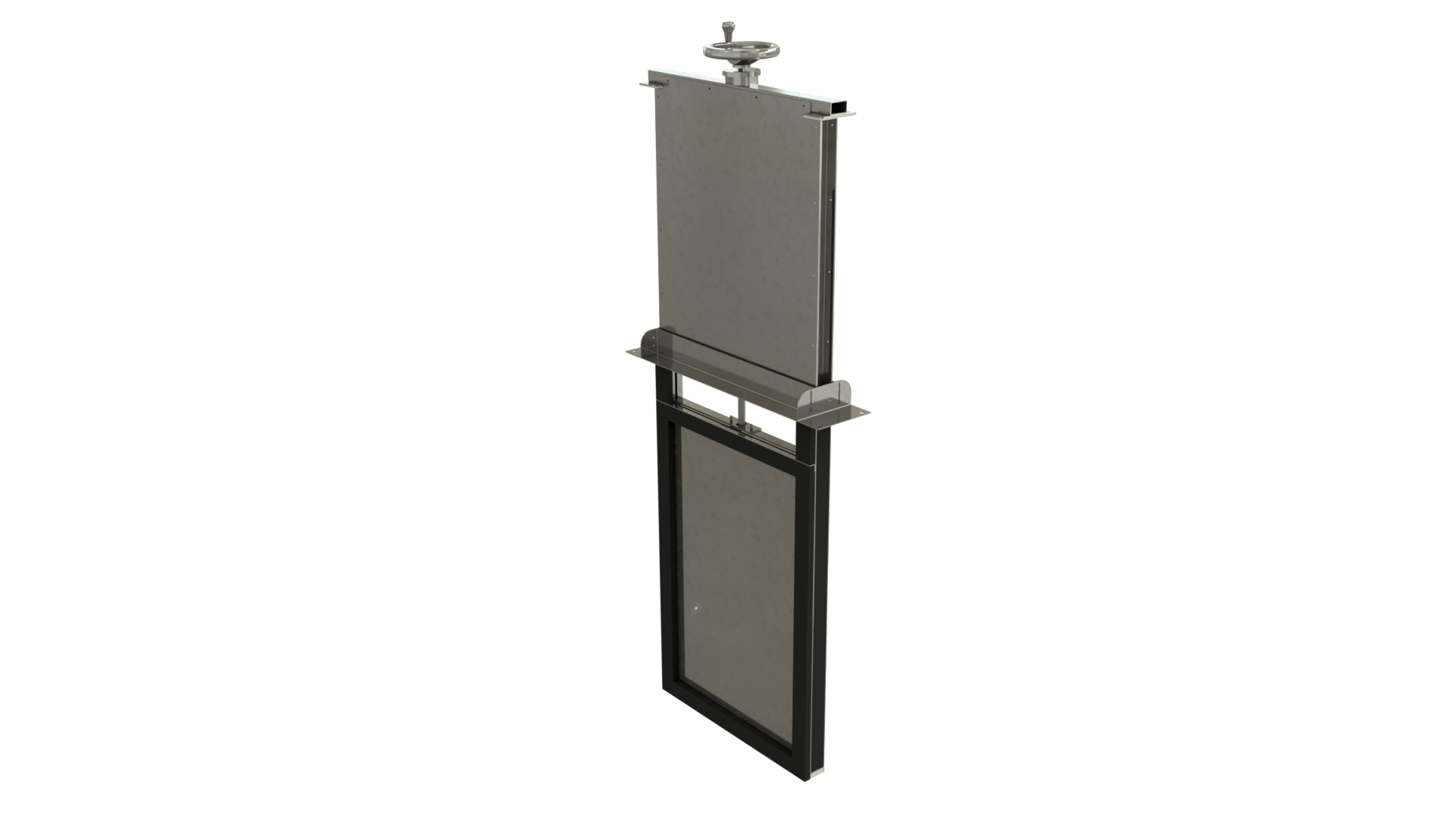

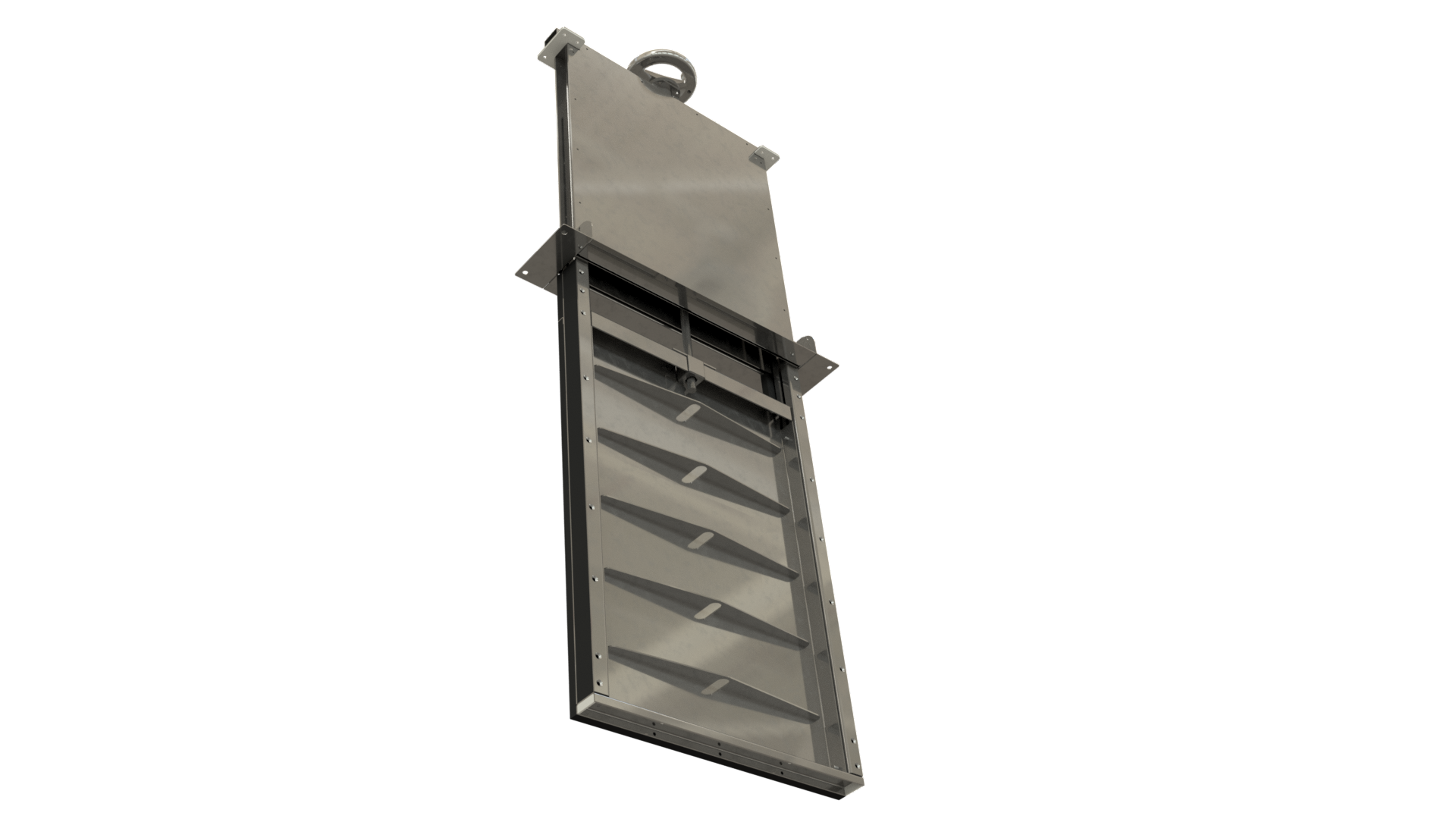

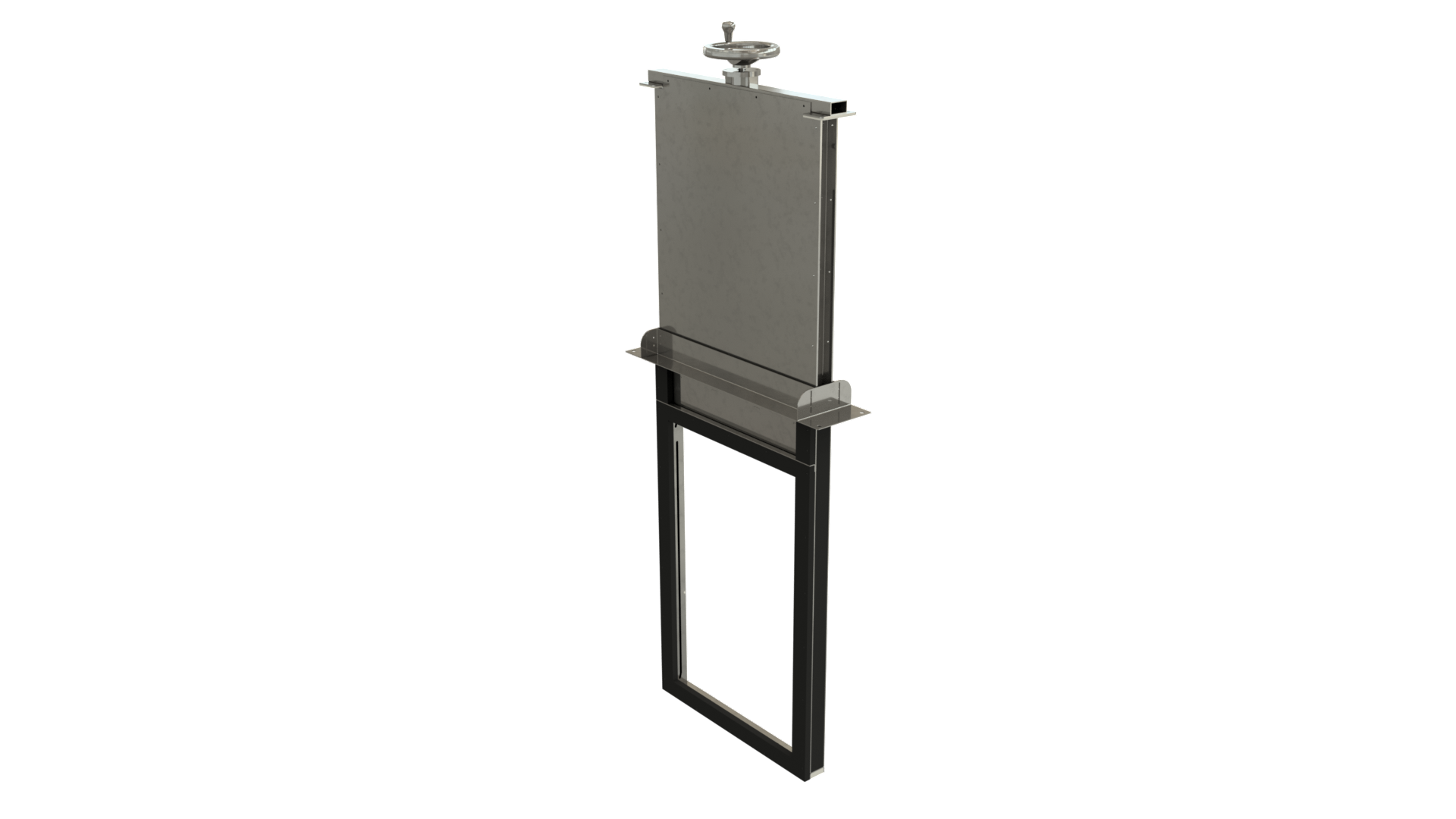

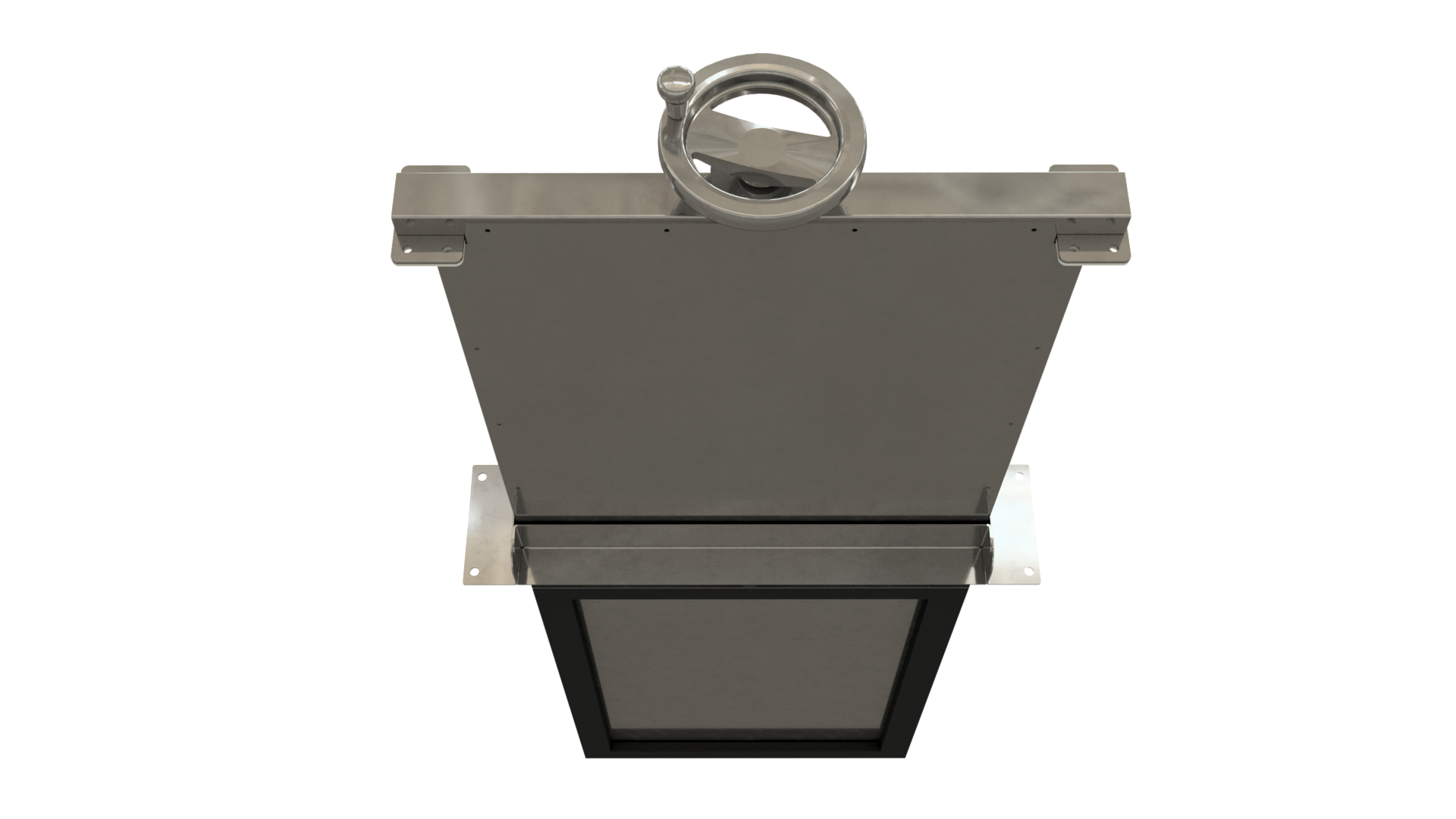

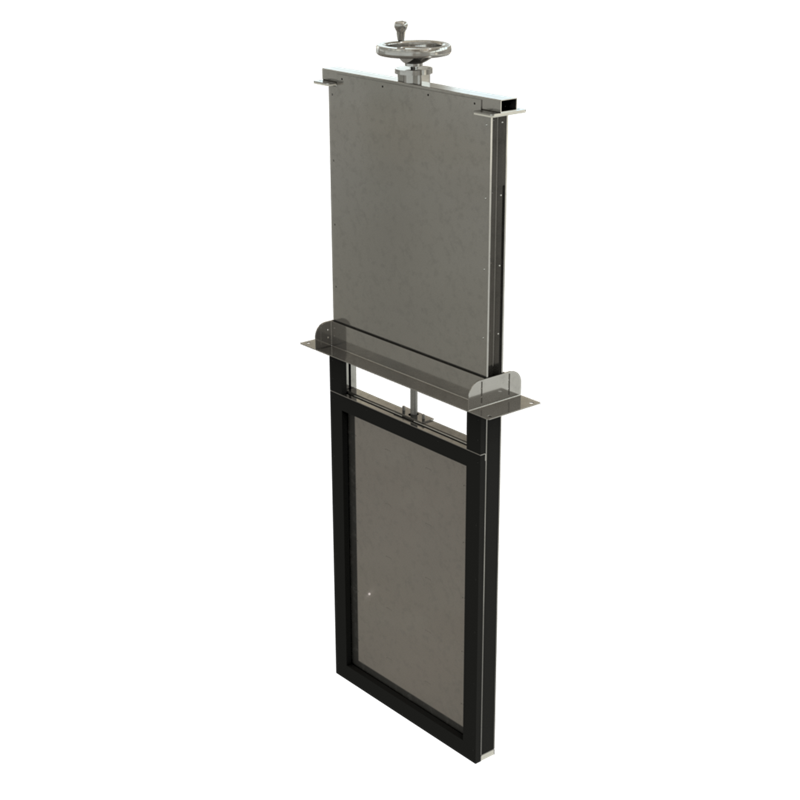

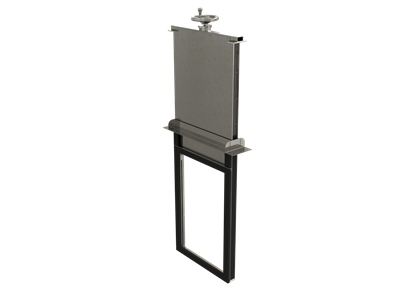

Channel mounted valve
Type number: AQ.017.002
The AQ.017.002 channel mounted valve is used for shut-off tasks between structures and/or channels.

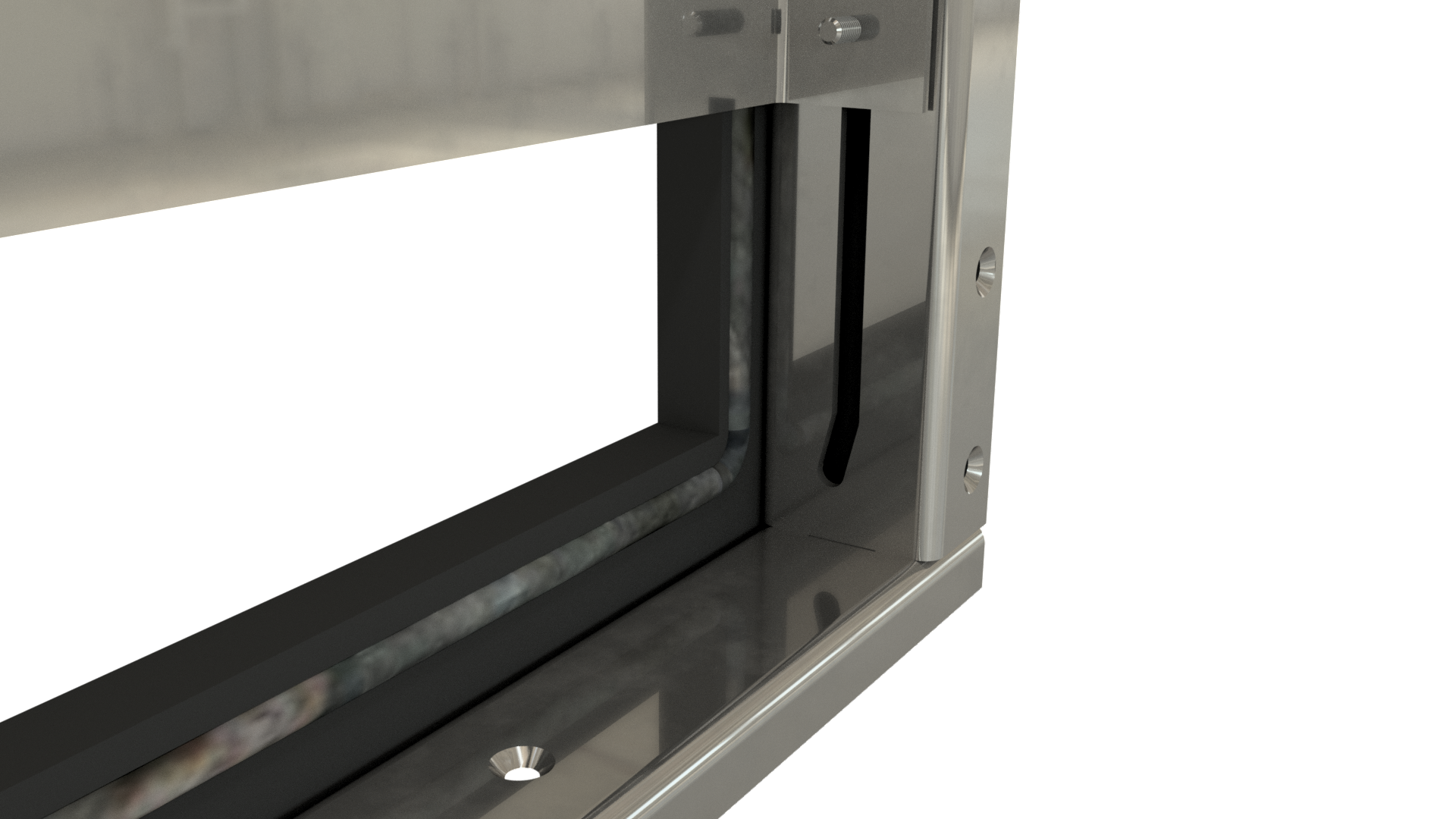

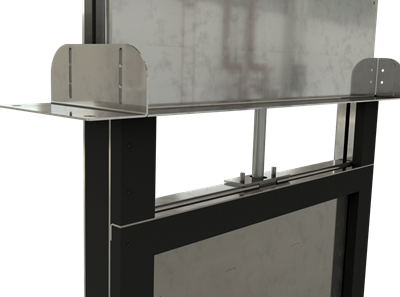

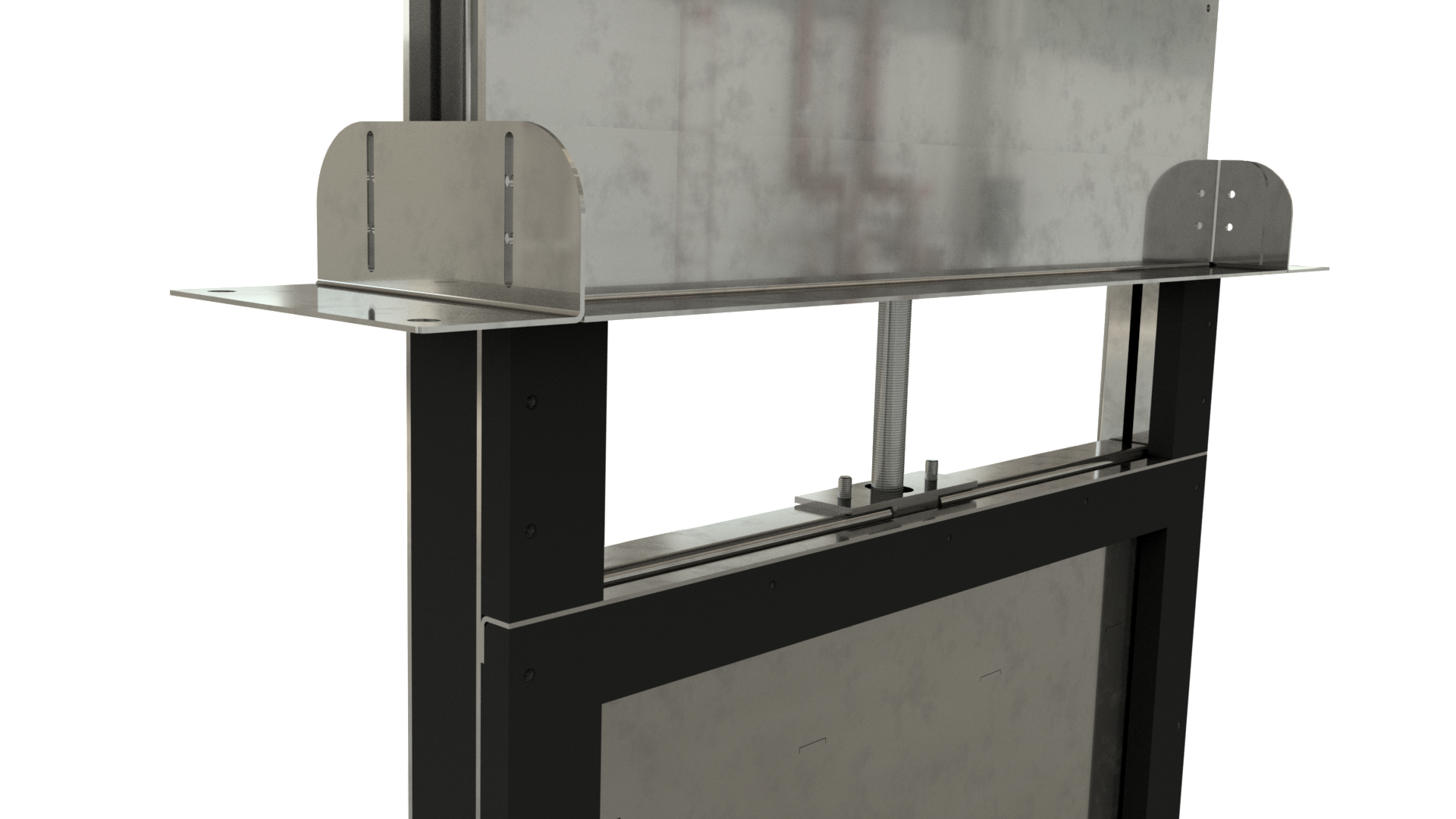

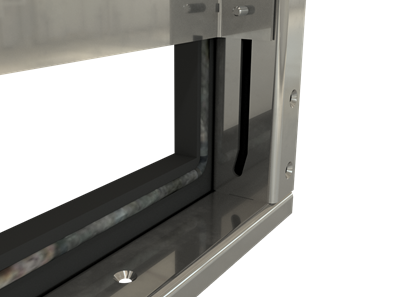

Aquagain's AQ.017.002 channel mounted valve is available with a frame profile in either stainless EN 1.4301 or acid-proof EN 1.4404, PEHD guide profiles for the valve plate and EPDM gaskets in the sides and bottom for sealing. Above floor level, the product is sealed off with plates on both sides, to shield against any media and odour nuisance.

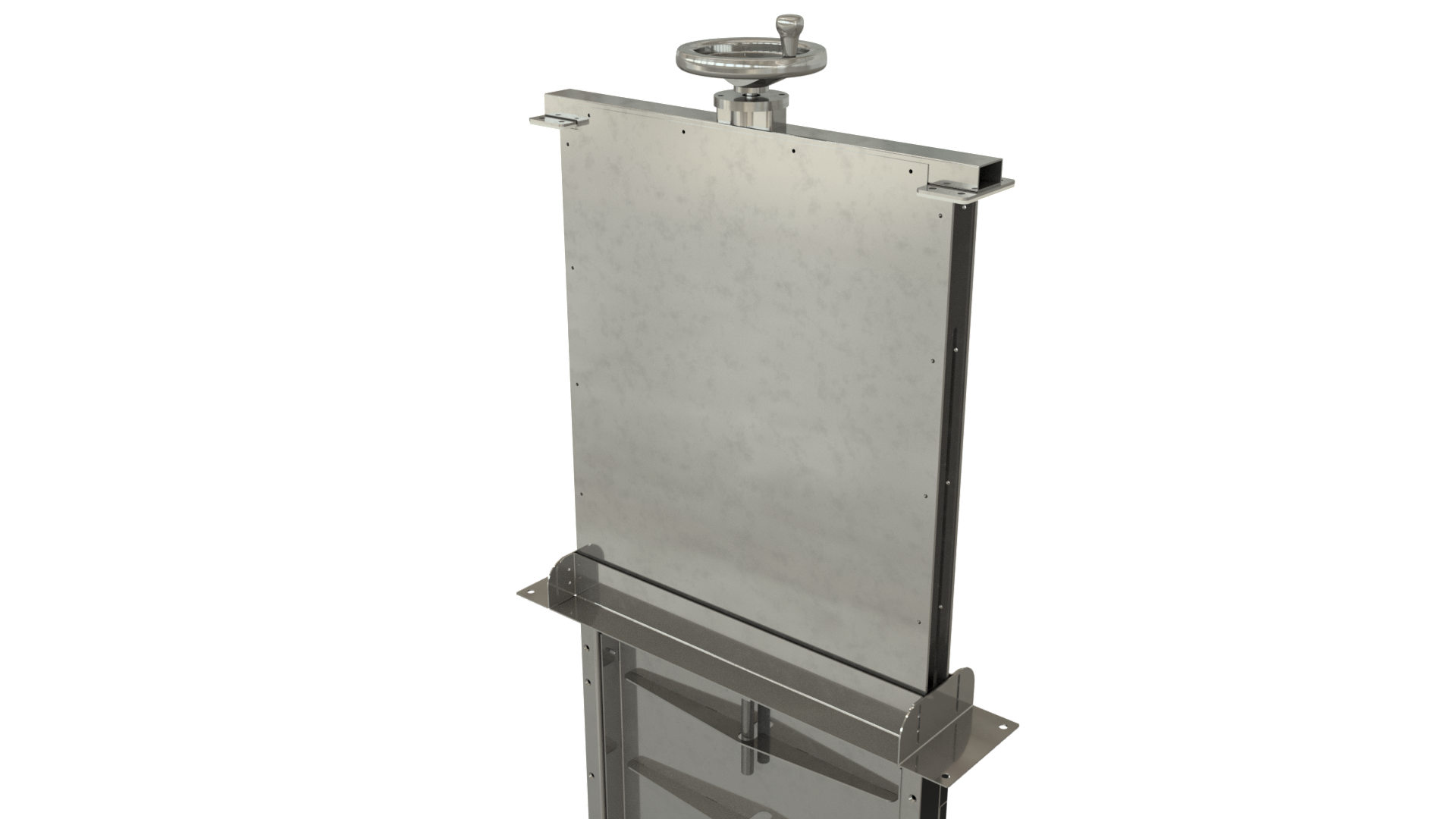

The product is ready for embedding. Aquagain offers the AQ.017.002 channel mounted valve with 1:1 or 1:2 gear, AUMA Gear or hand wheel. Regardless of the type, the product is prepared for mounting gears, AUMA and hand wheels.
The AQ.017.002 channel mounted valve is available with and without a stop. The spindle is an M25 non-rising trapezoidal spindle. The pitch of the spindle is 5 mm / turn.
