| Pressure ratio: | 6MVS |
|---|---|
| Frame: | Stainless EN 1.4301 or acid-proof steel EN 1.4404 |
| Valve plate: | Stainless EN 1.4301, acid-proof steel EN 1.4404 |
| Spindle: | Stainless EN 1.4301, acid-proof steel EN 1.4404 |
| Bushing: | Bronze 25 QOB A R (zinc-free) |
| Rails in valve frame: | PEHD plastic |
| O-ring: | EPDM rubber |

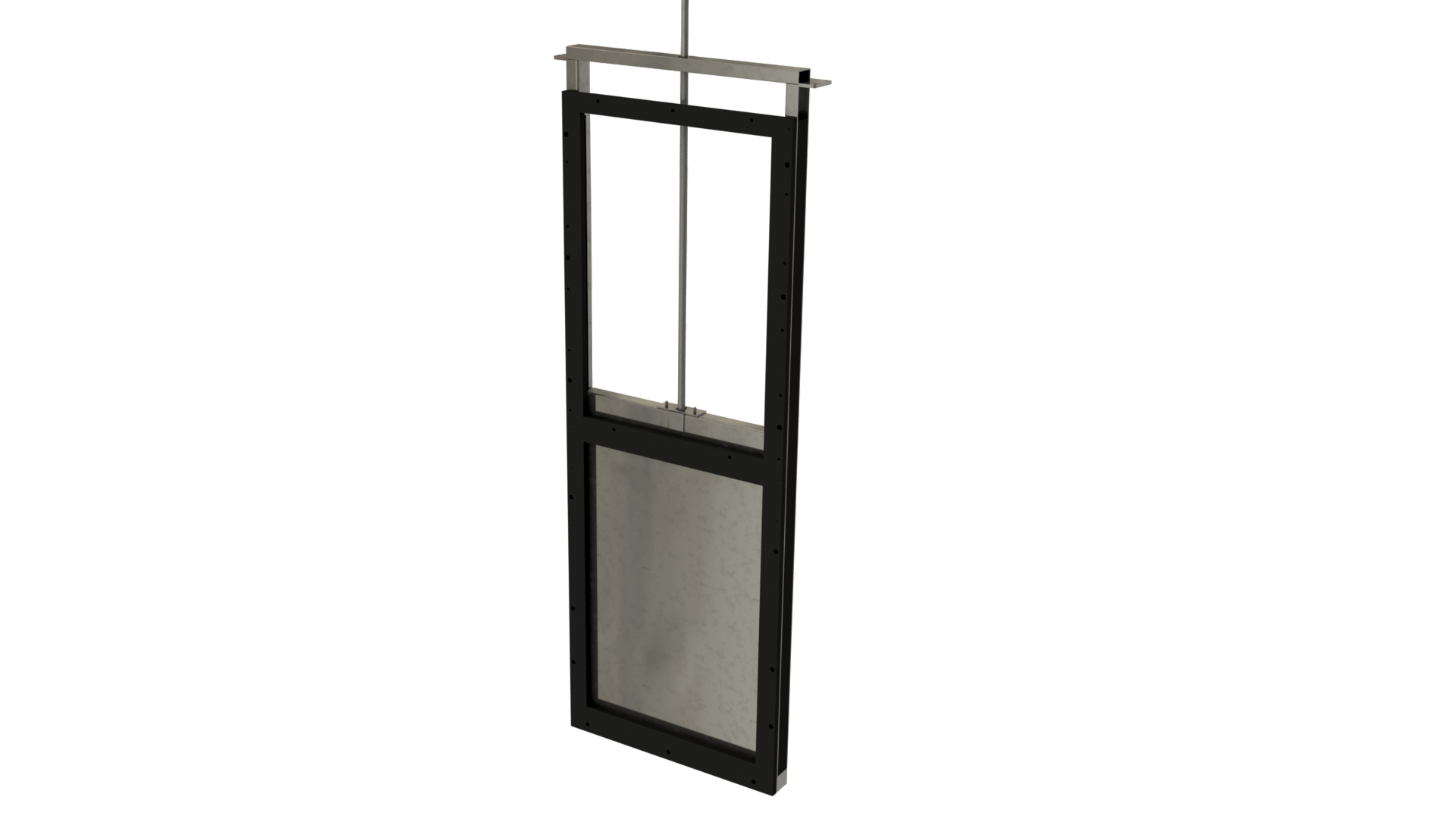

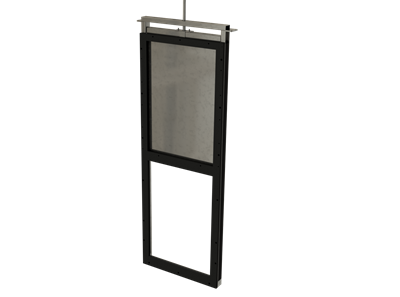

Wall-mounted shut-off valve
Type number: AQ.017.003

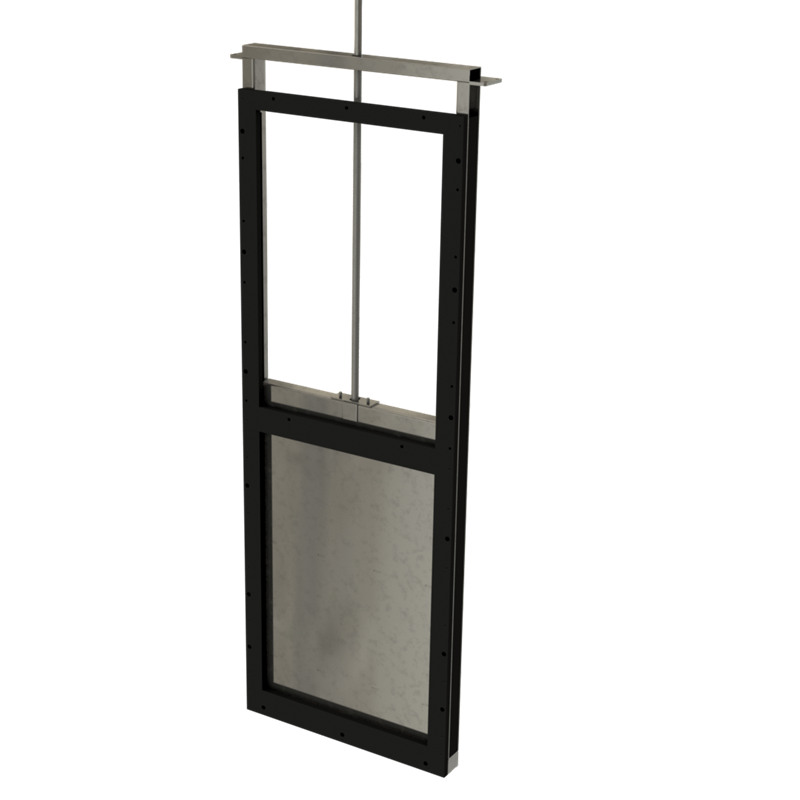

The wall-mounted shut-off valve is used for shut-off tasks between structures and channels, typically for deep or covered basins.

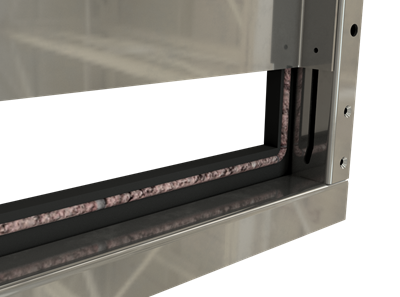

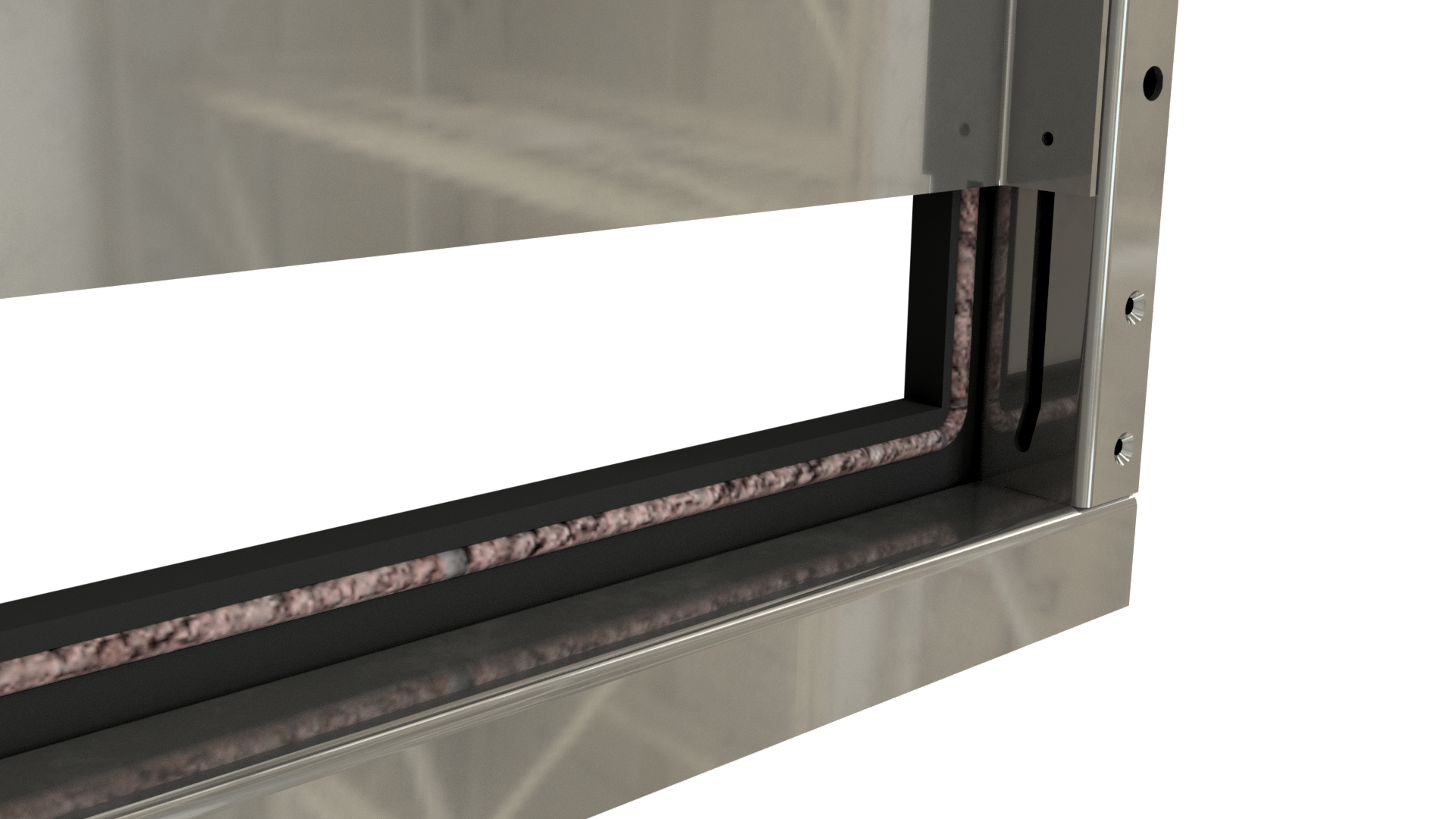

Aquagain's AQ.017.003 wall-mounted shut-off valve is available with a frame profile in EN 1.4404, PEHD guide profiles for the valve plate and EPDM gaskets in the sides and bottom for sealing.

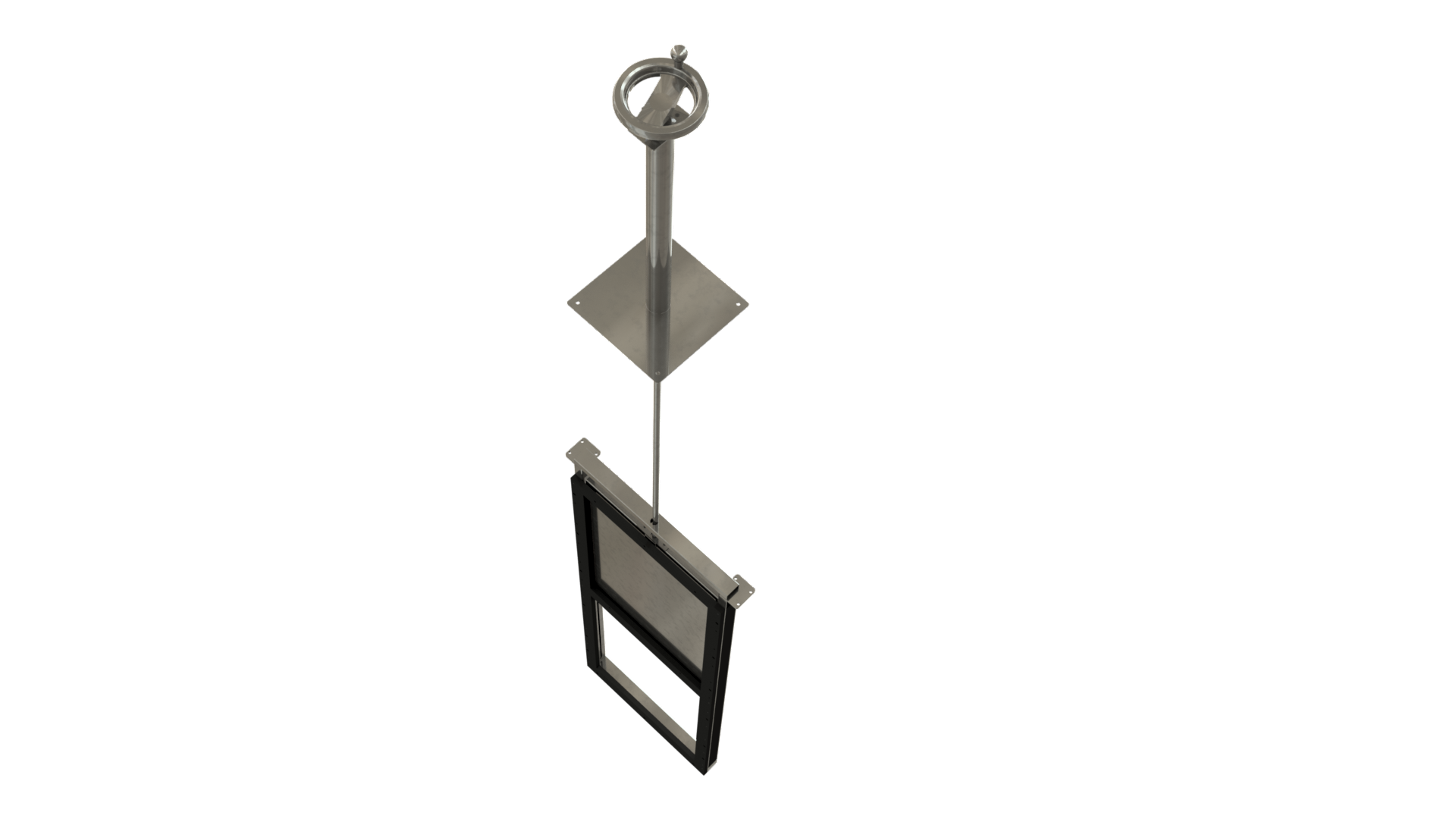

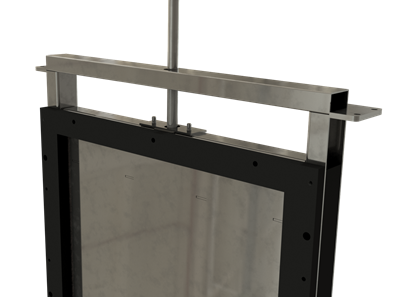

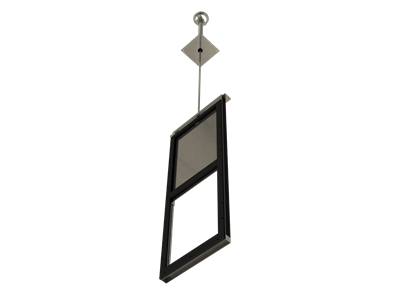

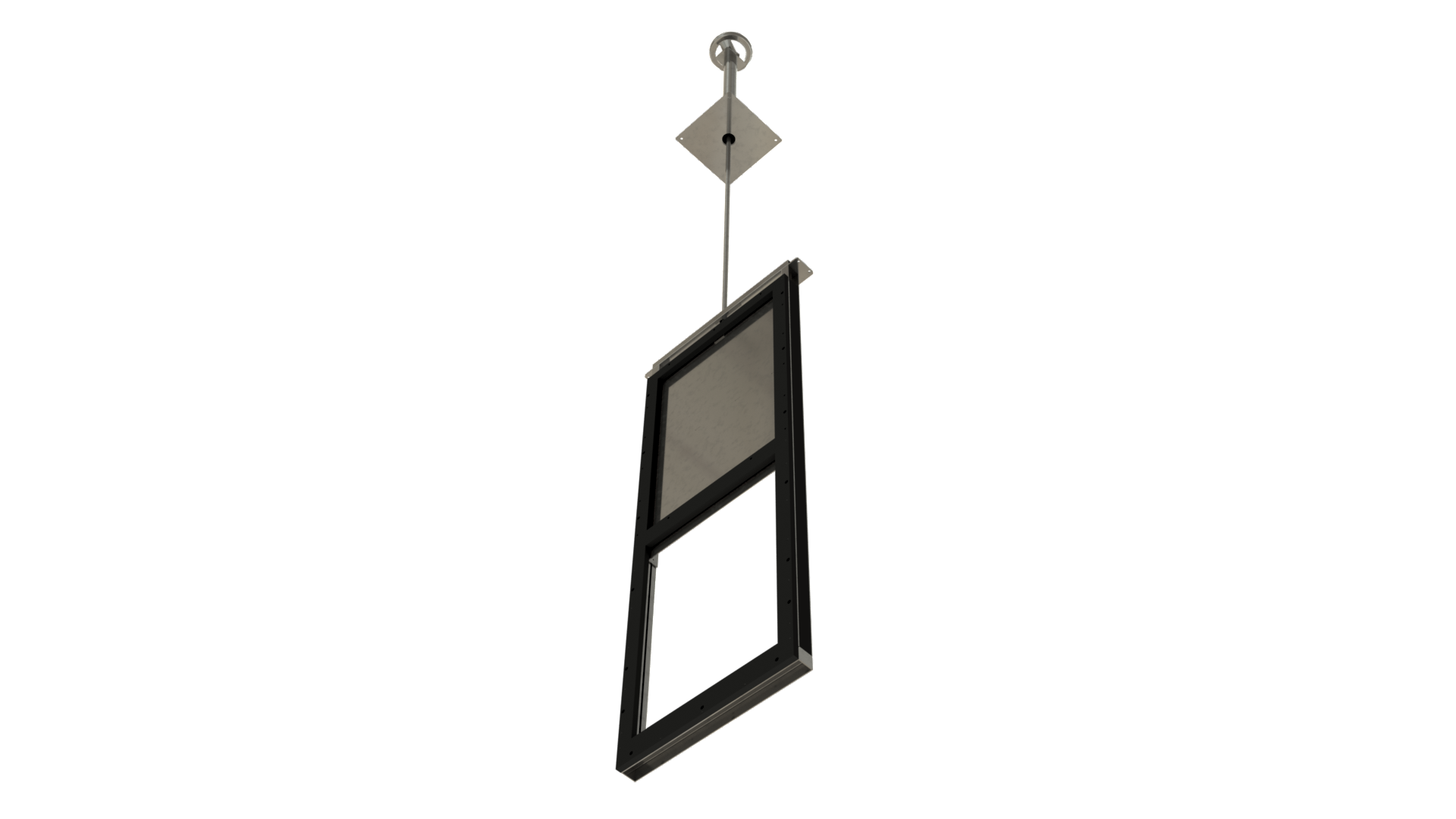

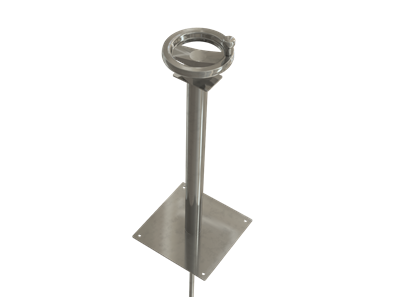

The product is wall mounted above floor level, with only the drive unit and spindle above ground. The product is secured in a stand that also acts as a shield plate for holes in the floor, as well as protecting the spindle and the operator.

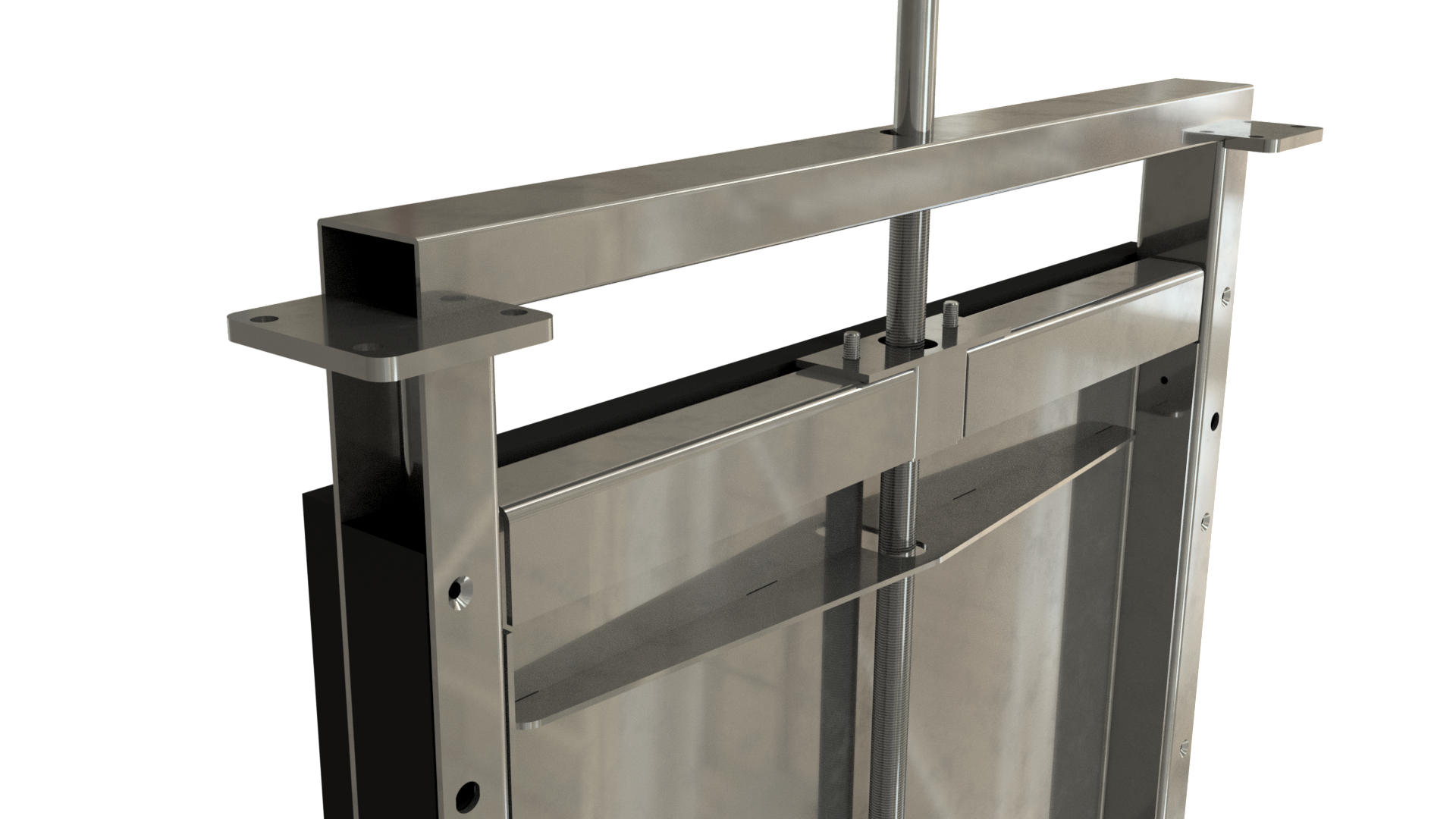

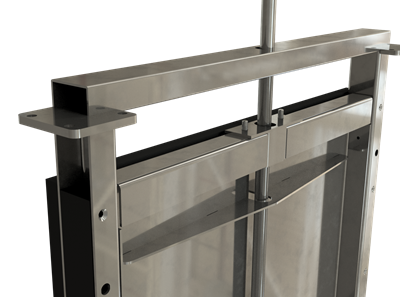

The product shields against any media and odour nuisances. The product is offered with a 1:1 or 1:2 angle gear, AUMA gear or hand wheel. The spindle is a M25 non-rising trapezoidal spindle. The rise of the spindle is 5 mm/turn.
